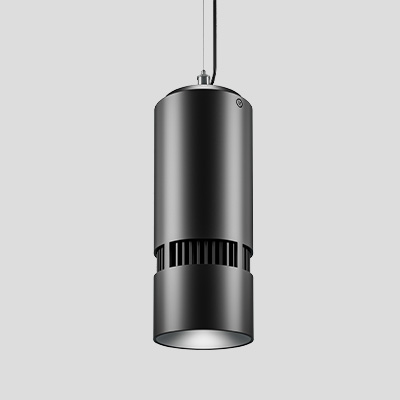

This luminaire has a seamless appearance for mixed ceiling applications. With trimless and glare-free design, it offers superior light distribution and minimal light loss. The quiet ceiling design has been specified in a multitude of high-profile projects.

Available in both Damp and Wet Location Ratings, this luminaire offers versatility and convenience.

DIMENSIONS

FEATURES
Powerful Cylinder with Small Form Factor Design
With a lumen package reaching 10, 000 lumens this is a powerful 6-inch aperture luminaire that is suitable for a variety of project applications from 15 – 25 ft. mounting heights. This luminaire allows for better luminaire spacing and cost effectiveness

One Luminaire System
With the various configurations offered, this luminaire is compatible with a variety of 0 – 10v controls and DMX dimming. Furthermore, Tunable White compatibility makes this a versatile luminaire.

Outdoor and Natatorium Rated
No matter the type of project, this luminaire has all the basis covered and has been recognized by the IES Progress Report Award and Product Innovation Award in 2014

DETAILS
MODEL

ATRIA 6
WATTAGE

40 W
60 W
80 W
100 W
CCT

2700 K
3000 K
3500 K
4000 K
LUMEN OUTPUT

3470 lm
5780 lm
7620 lm
9250 lm
DIMMING

TRIAC dims to 1%
ECOsystem dims to 1%
Superior 0-10V dims to 1%
Standard dims to 10%
DMX dims to 0.1%
RATING

Outdoor Rated
Natatorium Rated
CRI

85
93
FINISH

Black
White
CERTIFICATIONS
