- ৹ 30% higher lumens than previous gen, reaching up to 26,500 lm
- ৹ 50% White Light + 50% RGB, converting spaces with vibrant hues
- ৹ SilentBlack™ Finish blends the cylinder with a quiet ceiling aesthetic
WATCH THE FULL INTRODUCTION

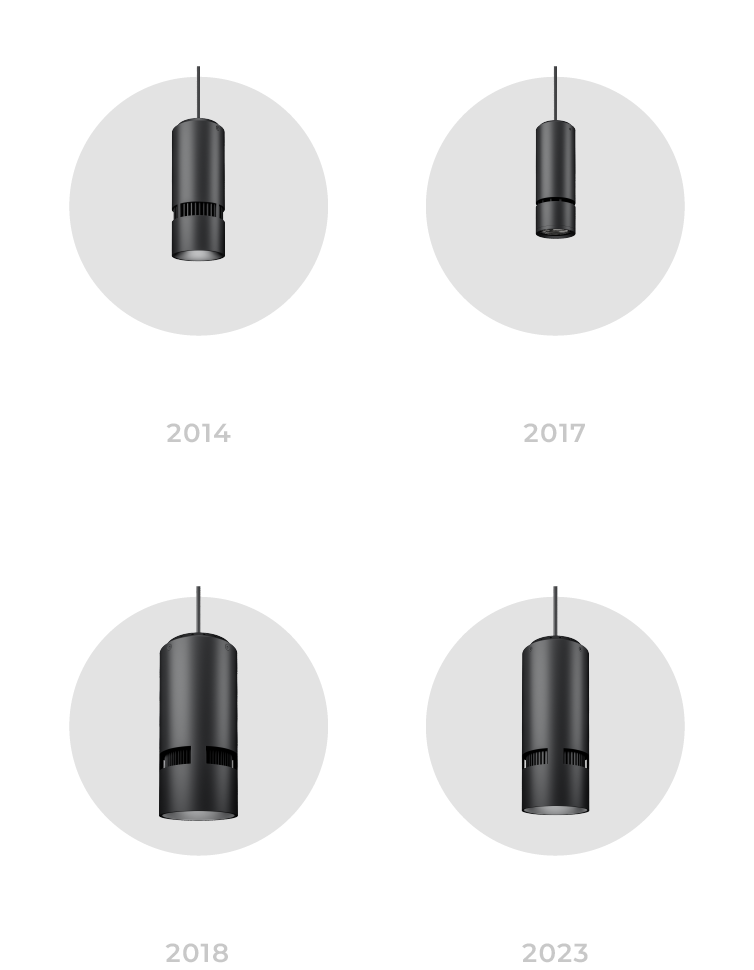

Best-in-Class for a Decade
For over a decade, the Atria Series has been the standard in performance spaces worldwide. With a range of aperture sizes and advanced DMX dimming capabilities, it has delivered best-in-class illumination that shapes the ambiance of thousands of prestigious architectural projects globally.

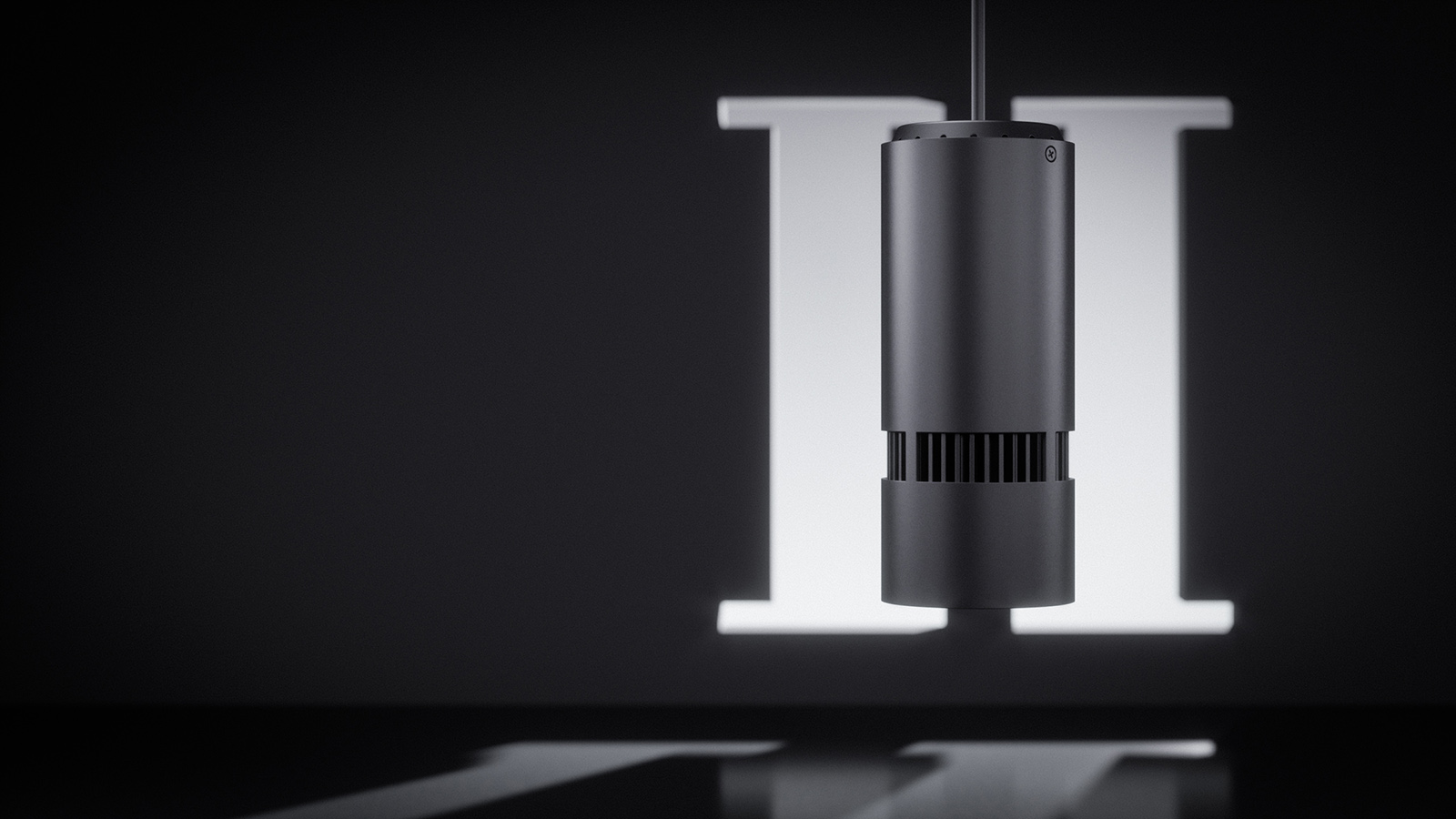

Introducing Atria Mark II

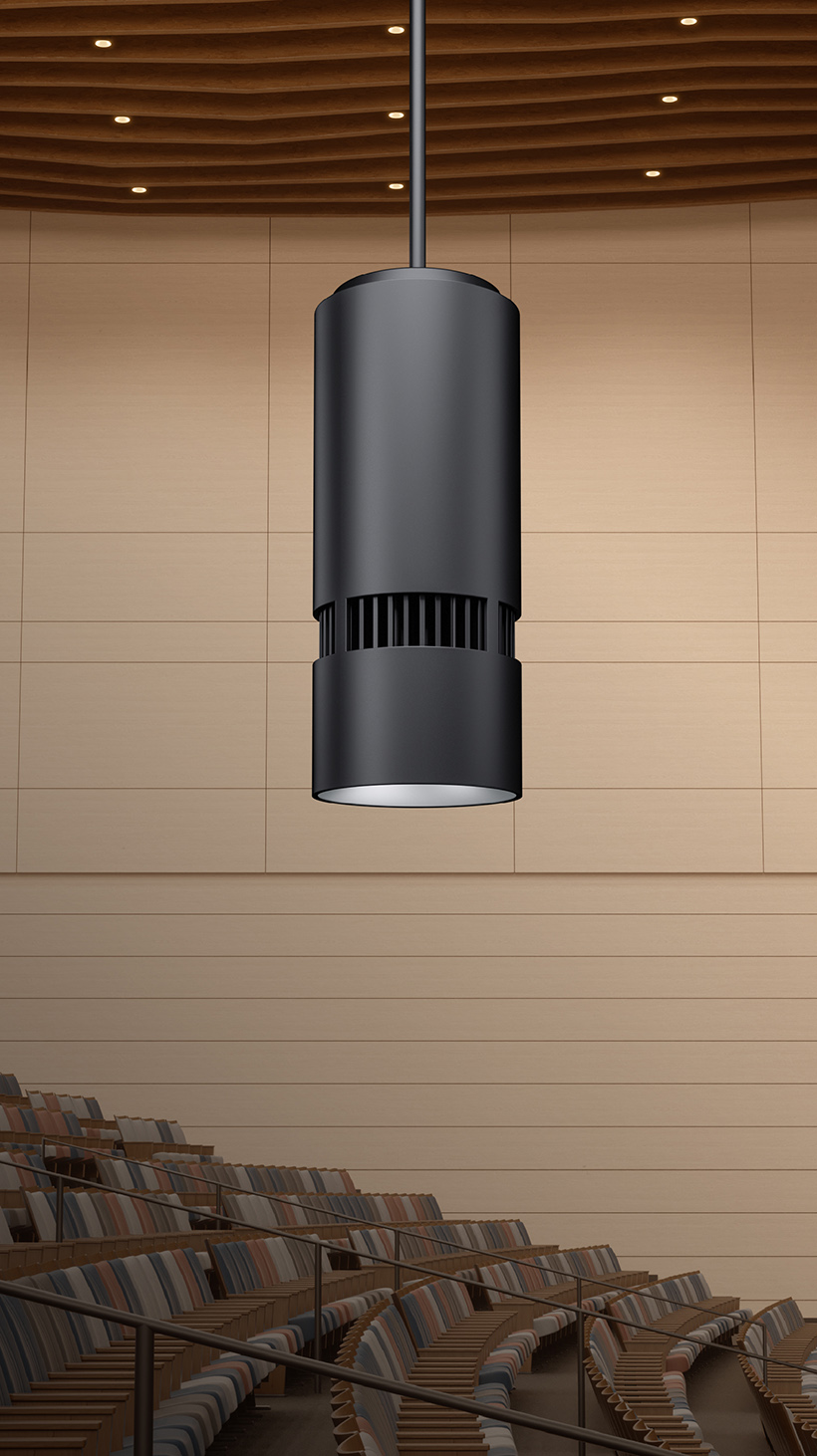

Engineered for performance spaces, this architectural compact cylinder seamlessly integrates into ceilings, delivering powerful performance with vibrant, color-changing technology that elevates any stage environment.
Orchestrate a Masterful
Performance with Color
Archi-Color technology enhances performance spaces by seamlessly transitioning from high-quality white light to a spectrum of rich colors. Curate a unique experience to suit a variety of activities, subtle hues for lectures or vibrant splashes for concerts, all controlled with DMX precision.
Archi-Color W+RGB
Our proprietary technology allocates 50% of the luminaire wattage to high-quality true-to-color white light and the remaining 50% to consistent RGB lighting, all from a single light source.
Learn more about Archi-ColorELEVATED TO PERFORM
Engineered to Dominate

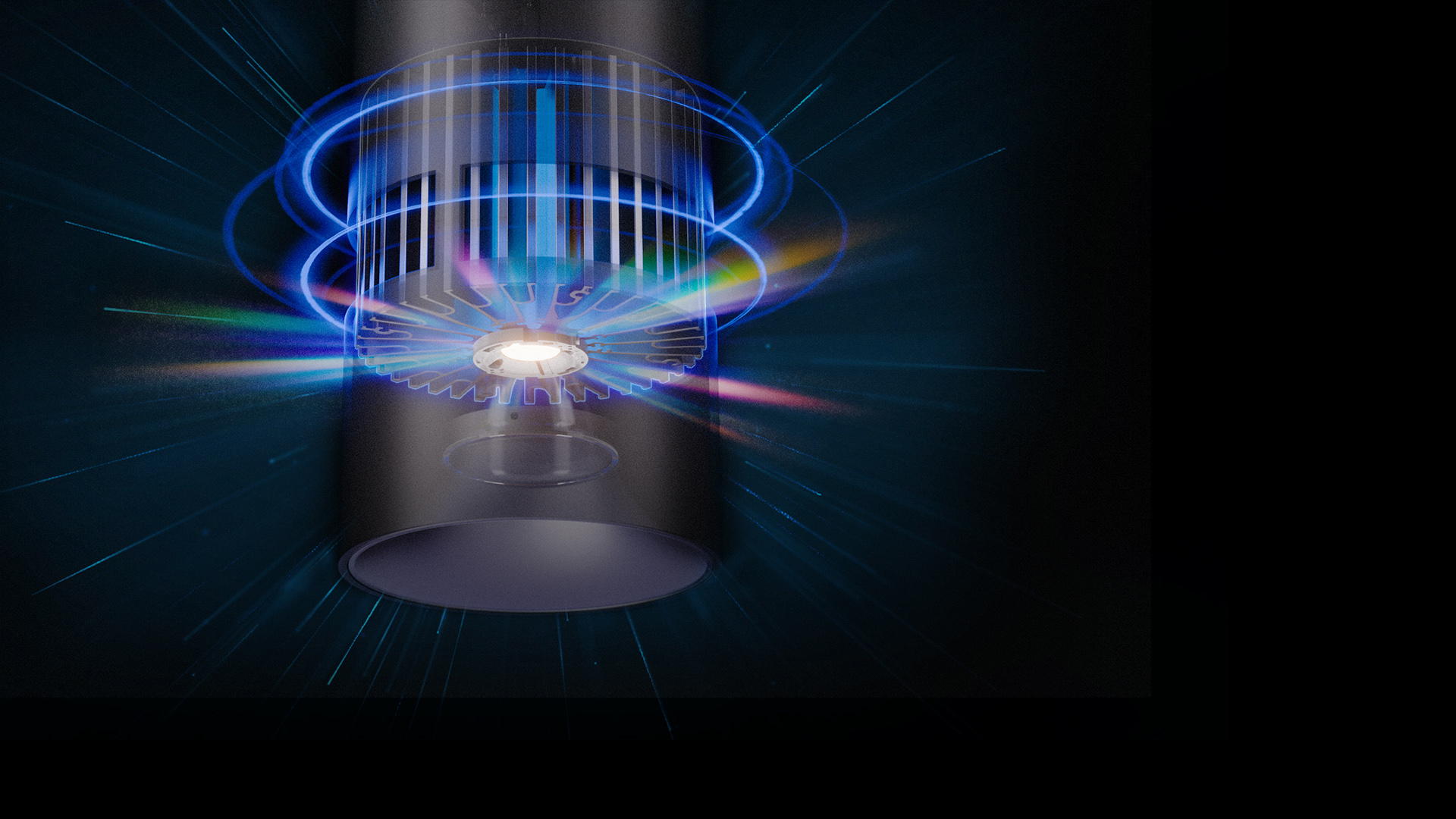

Atria II now boasts a 30% increase in lighting output with its newly engineered lighting engine, ensuring that every performance is not just seen, but truly experienced.

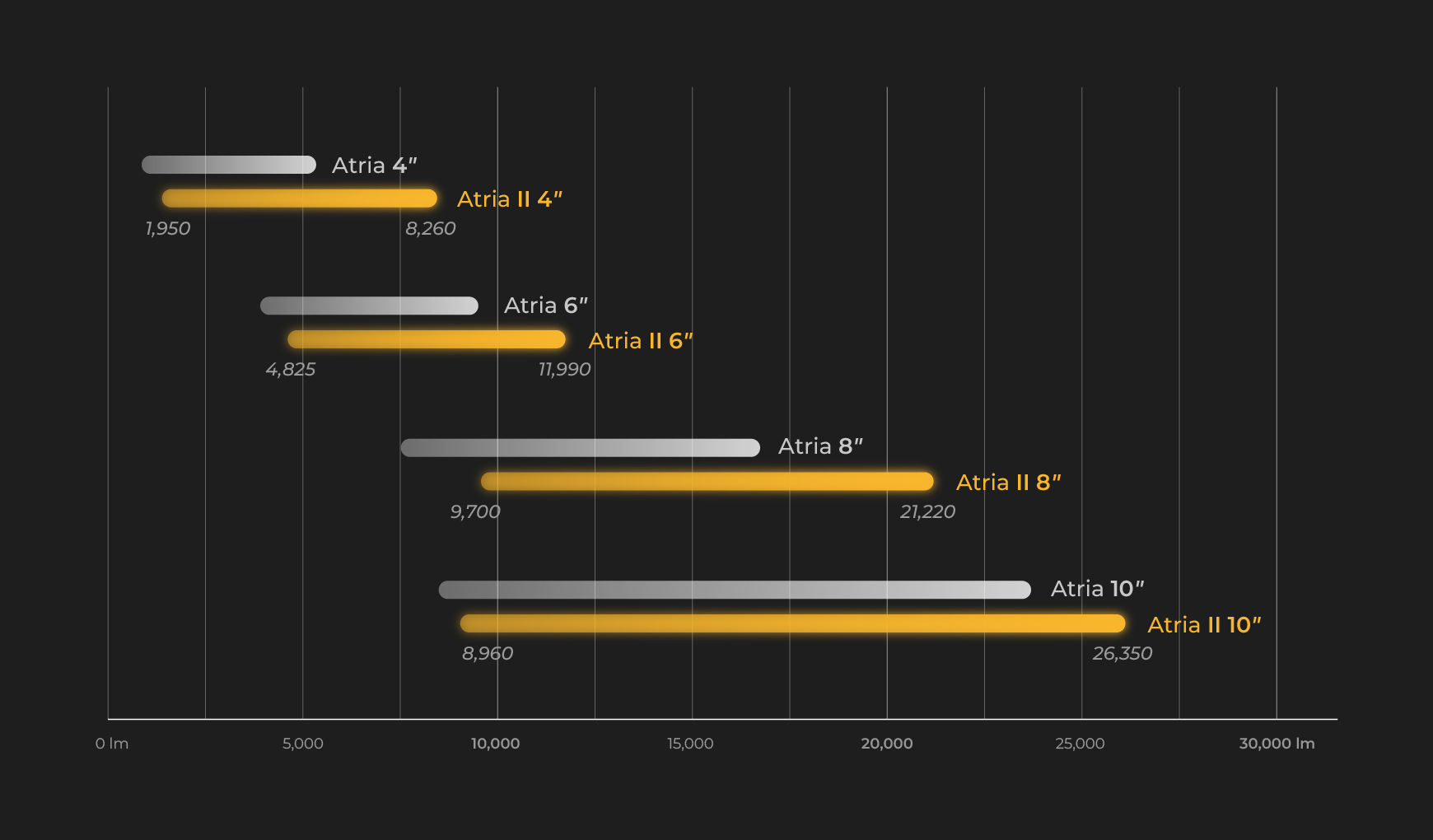

HIGHER DELIVERED LUMENS
Unmatched Efficiency + Power
The Atria II now features a higher and expanded lumen range, qualifying for DLC certification on all 4 apertures, while delivering dependable, high-quality illumination.
up to
26,000
Delivered Lumens
INVISIBLE BY DESIGN

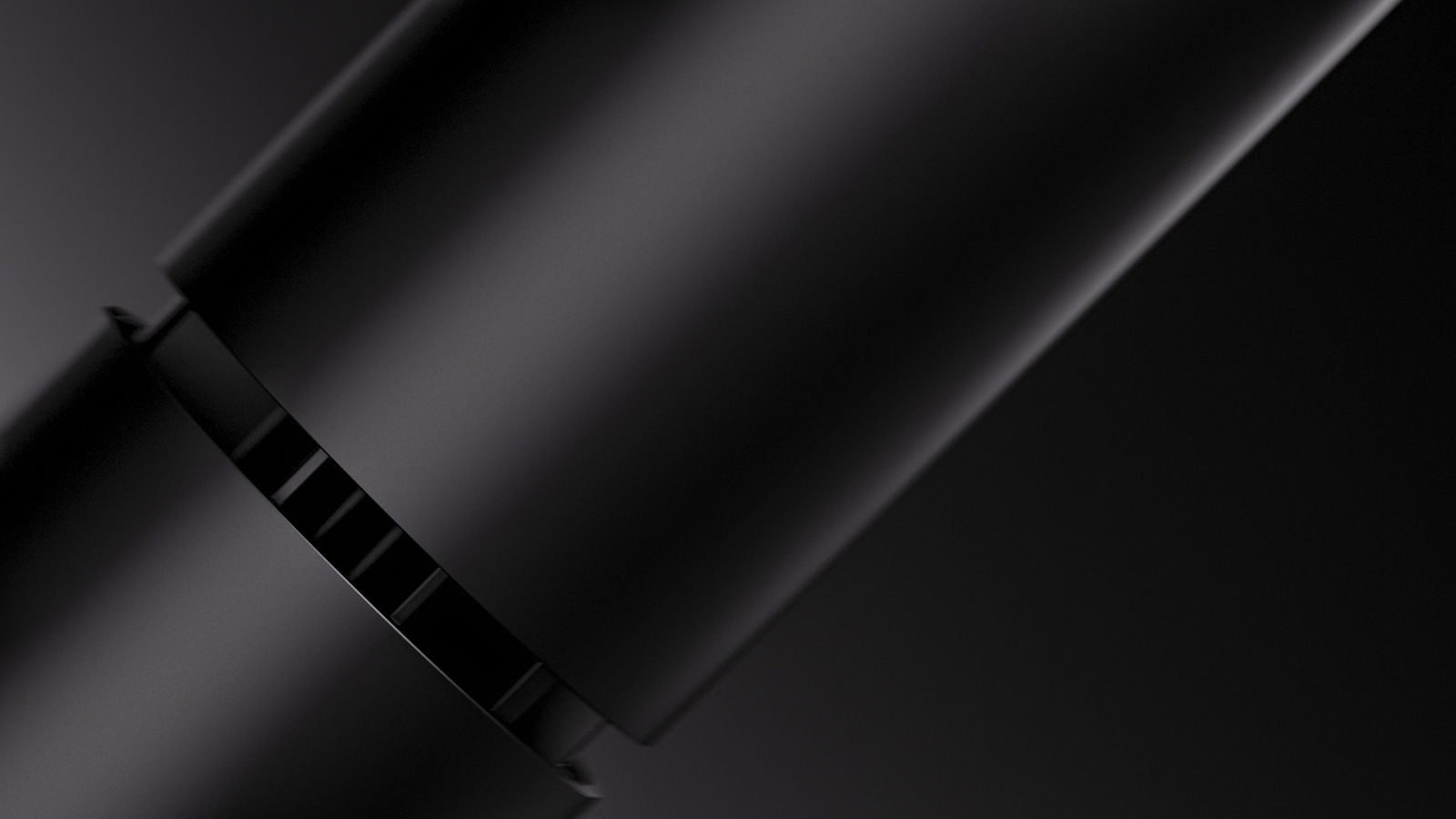

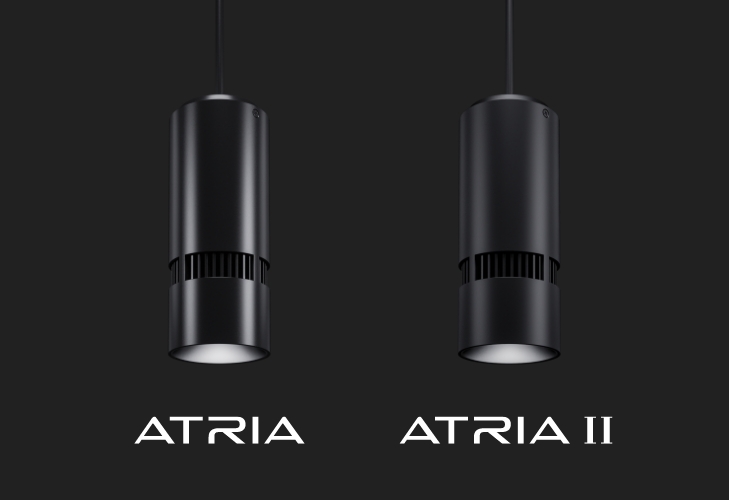

SilentBlack™ Finish
Atria II seamlessly blends into any performance space with its exceptional matte black finish. This new architectural finish reduces reflectance to under 5%, ensuring the fixtures remain unobtrusive, hidden in sight while delivering uncompromised light quality.
Bring sophistication to your designs with quiet, high-performing cylinders and elegant rings of light.

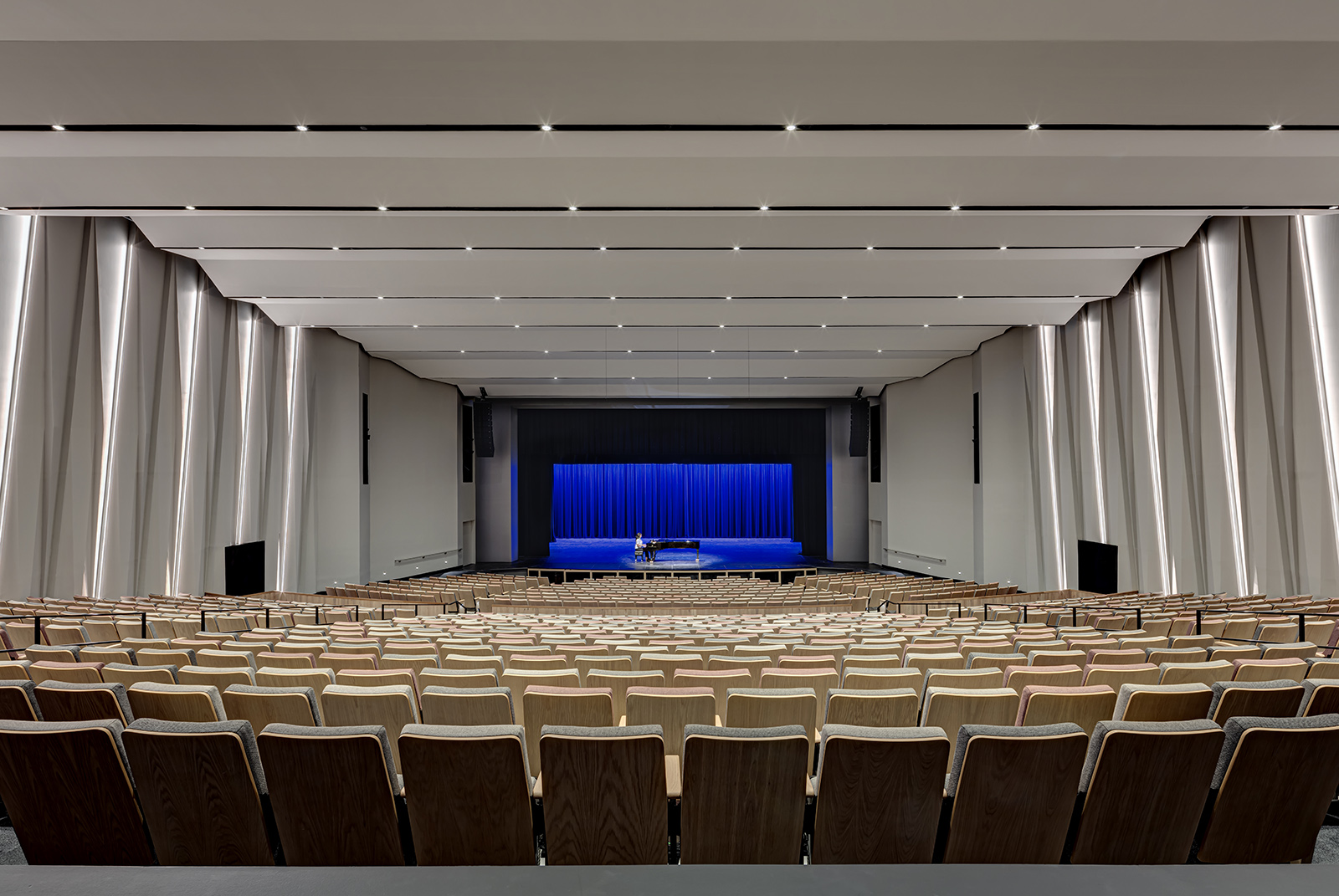

Melissa High School Performance Hall, Melissa, TX
Specifications
| Atria II 4" | Atria II 6" | Atria II 8" | Atria II 10" | |
|---|---|---|---|---|
| Wattage | 15, 25, 35, 45, 65W | 40, 60, 80, 100W | 80, 100, 130, 160W | 80, 110, 140, 180, 220W |
| Delivered Lumens | 1,950 - 8,260 lm | 4,800 - 11,990 lm | 9,700 - 21,220 lm | 8,960 - 26,350 lm |
| Color Temperature | 2700K, 3000K, 3500K, 4000K Warm Dim, Tunable White, W+RGB | 2700K, 3000K, 3500K, 4000K Warm Dim, Tunable White, W+RGB | 2700K, 3000K, 3500K, 4000K Warm Dim, Tunable White, W+RGB | 2700K, 3000K, 3500K, 4000K Warm Dim, Tunable White, W+RGB |
| Light Quality | CRI 85, 93 | CRI 85, 93 | CRI 85, 93 | CRI 85, 93 |
| Optics | 15°, 25°, 35°, 60°, WIDE | 40°, 60°, WIDE | 30°, 45°, 55°, WIDE | 30°, 45°, 55°, WIDE |
| Dimming | 0-10V 1%, DMX 0.1%, TRIAC 1%, LDE 1 1%, DALI 10% | 0-10V 1%, DMX 0.1%, TRIAC 1%, LDE 1 1%, DALI 10% | 0-10V 1%, DMX 0.1%, TRIAC 1%, LDE 1 1%, DALI 10% | 0-10V 1%, DMX 0.1%, TRIAC 1%, LDE 1 1%, DALI 10% |
