ARCHI-COLOR®

ATRIA II 10

Compact Cylinder for Performance Spaces

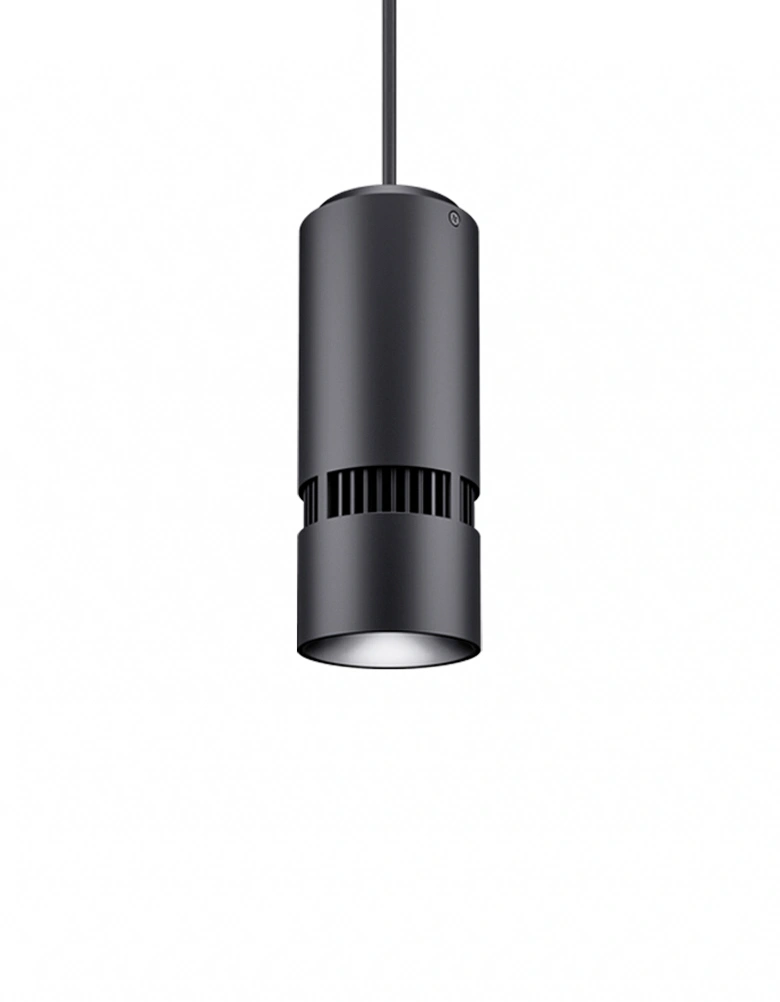

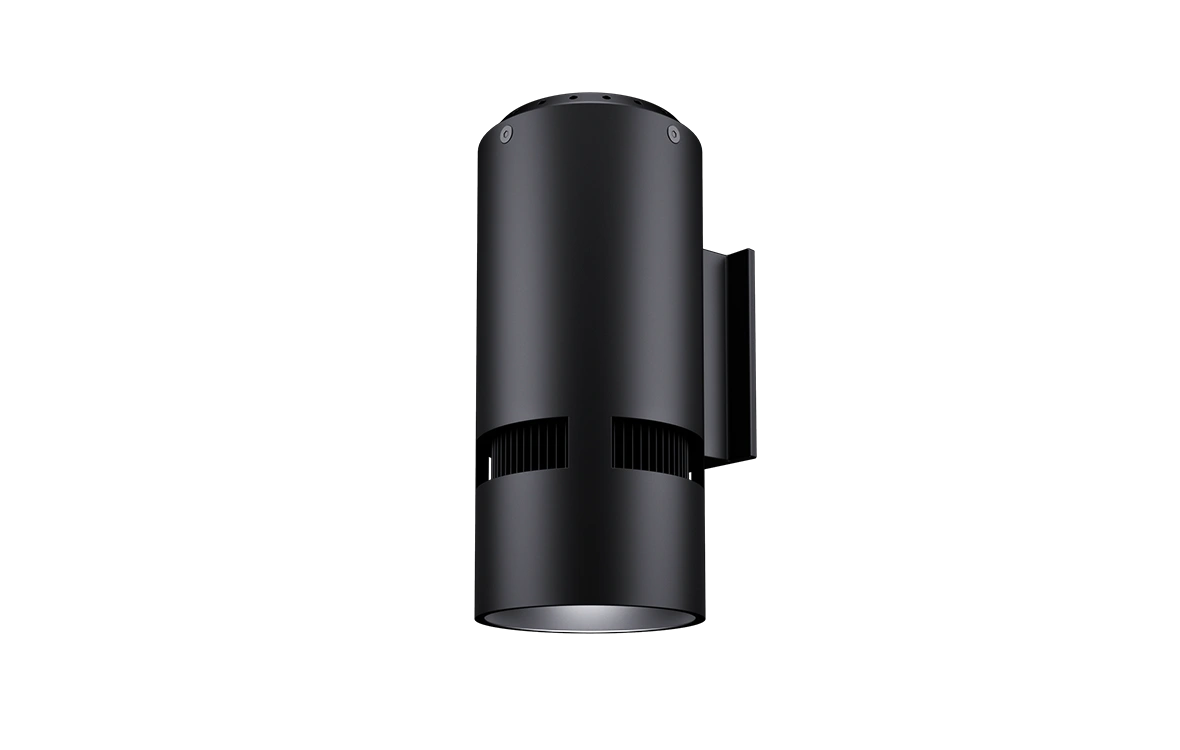

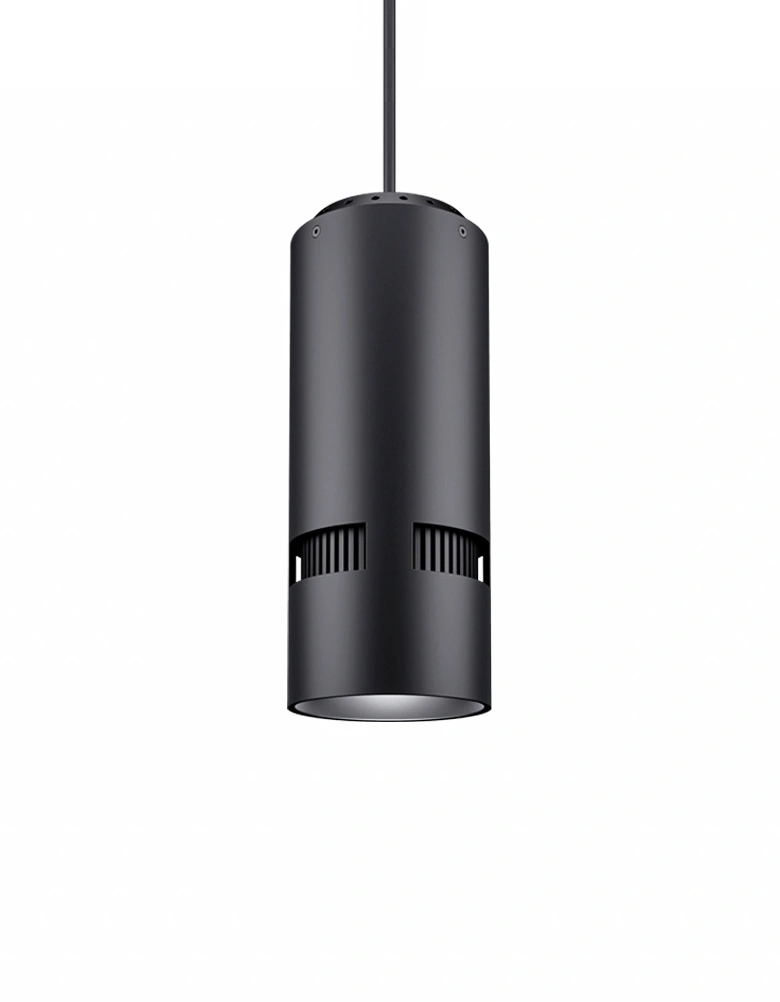

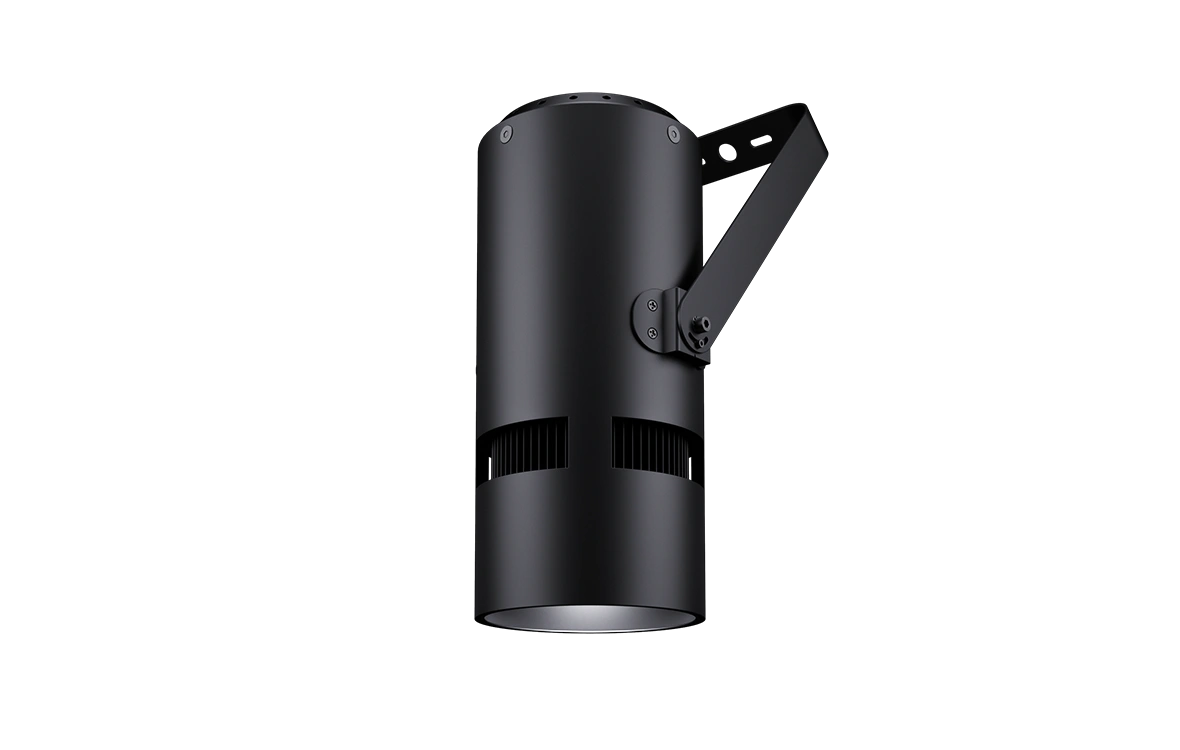

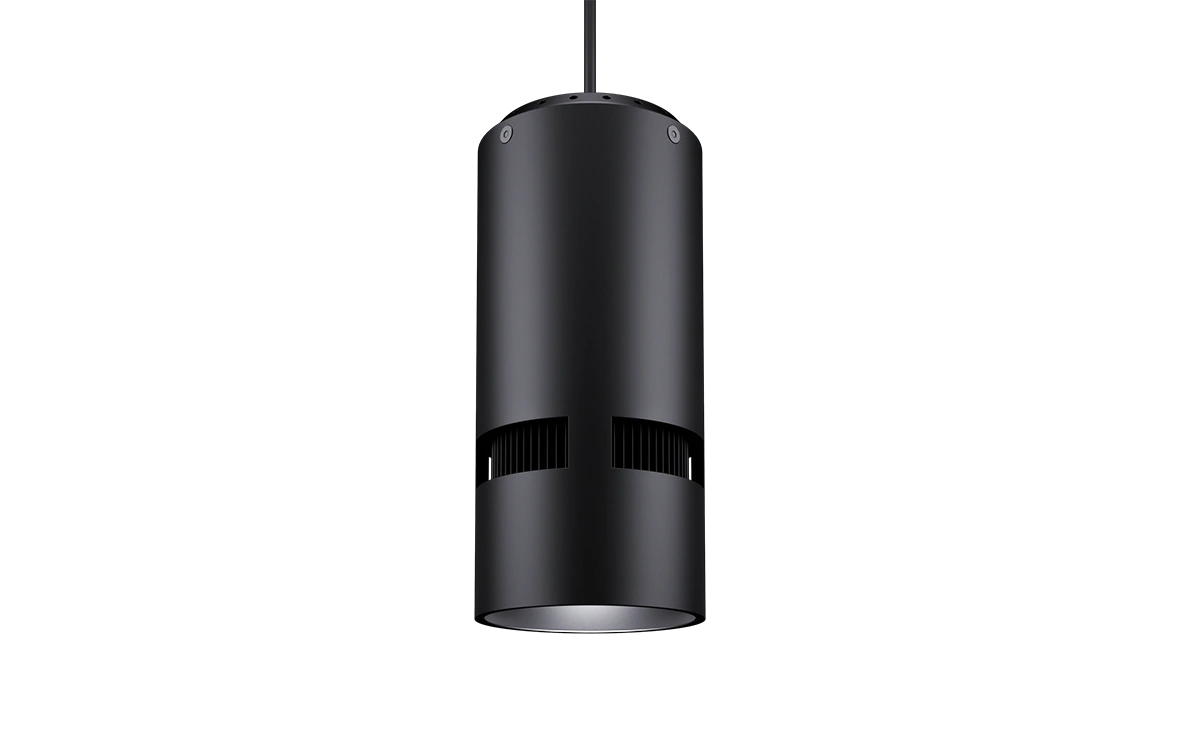

Atria II 10 Image - In Stem MountAtria II 10 Image - In Adjustable CableASII10-Theatrical YokeASII10-Wall Mount
INTRO PAGE VIDEO
ATRIA II 10
Compact Cylinder for Performance Spaces

Architectural 10-inch Cylinder

Engineered for performance spaces, this architectural compact cylinder seamlessly integrates into ceilings, delivering powerful performance with vibrant, color-changing technology that elevates any stage environment. With its next-gen design, the Atria Mark II features an upgraded light engine that boasts a 30% increase in lighting output across the series, and a new SilentBlack™ finish that reduces reflectance to under 5%.

DIMENSIONS

Atria II 10 Dimensions

FEATURES

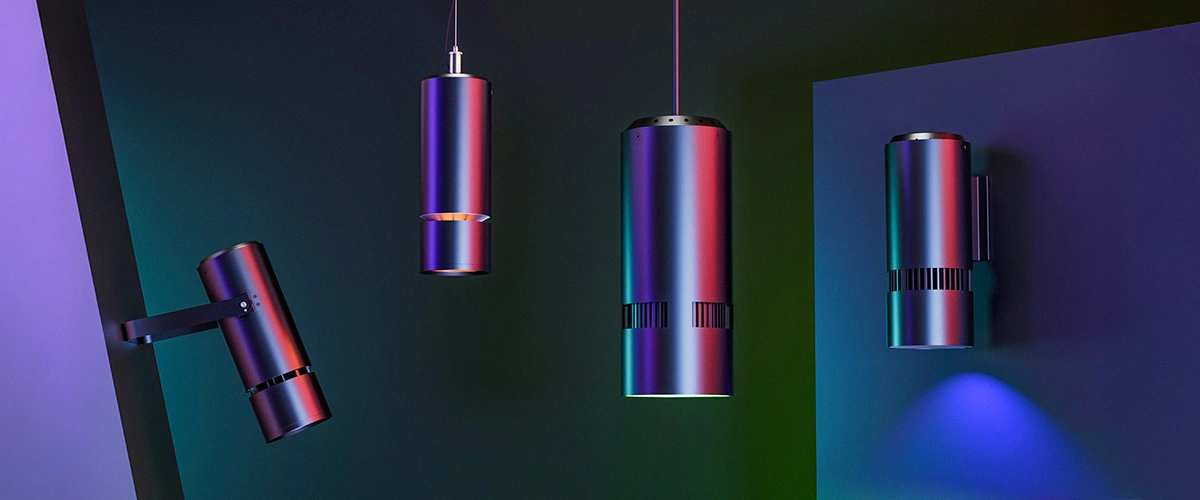

Brilliantly Versatile
With an impressive lumen output ranging from 10,300 to 26,350 lumens, coupled with advanced dimming capabilities, full range of dynamic color changing options, and versatile mounting choices, the Atria II provides solution for a wide range of applications.

Double Reflector Design
With such a powerful luminaire, optimum glare control is crucial. This is achieved through a double reflector design in the housing trim, which positions the light source further back to ensure a better cutoff angle.

DLC Qualified
The Atria II now offers a higher and more extensive lumen range, qualifying it for DLC certification with an efficiency above 120 lm/W, delivering high energy savings and reliable illumination.

DETAILS
MODEL
ATRIA II 10
WATTAGE
80 W
110 W
140 W
180 W
220 W
CCT
2700 K
3000 K
3500 K
4000 K
LUMEN OUTPUT
10,300 lm
13,390 lm
17,430 lm
22,470 lm
26,350 lm
DIMMING
TRIAC dims to 1%
ECOsystem dims to 1%
Superior 0-10V dims to 1%
Standard 0-10V dims to 10%
DMX dims to 0.1%
RATING
Outdoor Rated
Natatorium Rated
CRI
85
93
FINISH
Black
White
CERTIFICATIONS
