The Robust and Effective design of this luminaire can redefine High Bay applications for a wide range of architectural applications.

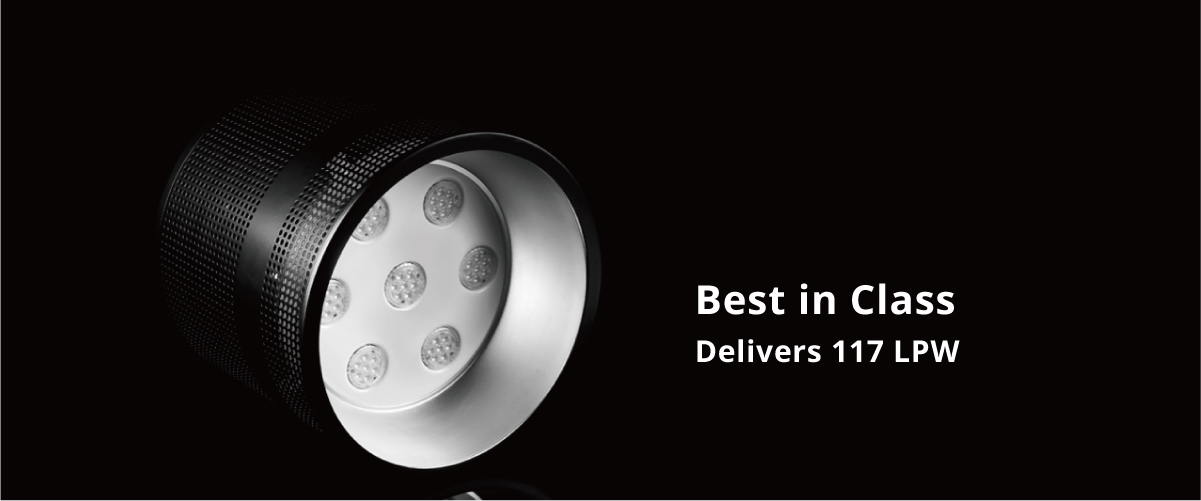

Delivering up to 117 LPW, this luminaire is one of the best performing luminaires for High Ceiling applications whilst also being DLC qualified.

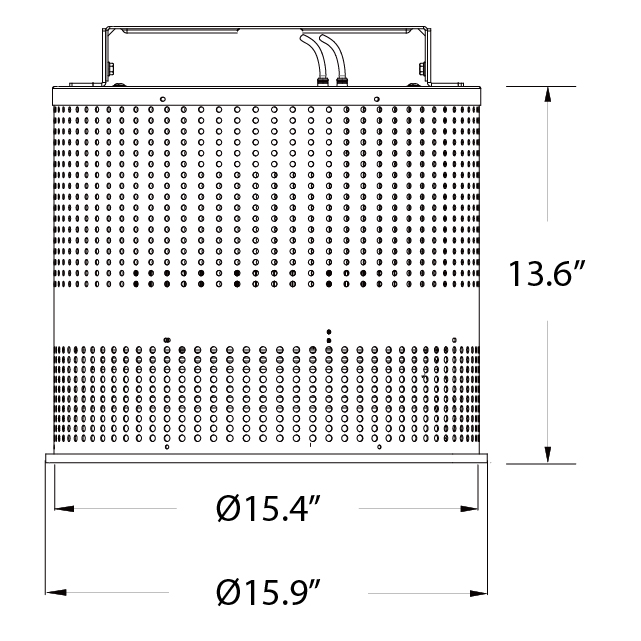

DIMENSIONS

FEATURES
Robust & Efficient Design
This luminaire redefines High Bay applications by offering a robust & efficient design in compared to Metal Halides. Suitable for a broad range of architectural applications, this luminaire has been specified in Churches, Schools, Colleges and other indoor applications

Advanced High Ceiling
This advanced high ceiling luminaire is designed for illumination for 20 – 40ft. mounting heights and is compatible with DMX dimming protocols

Award Winning Luminaire
With a lumen package of up to 17,130 lm, this luminaire has been recognized by both the Next Generation Luminaires and Product Innovation Awards in 2014

DETAILS
MODEL

SIGNUM 16
WATTAGE

115w
145w
195w
CCT

3000k
4000k
5000k
LUMEN OUTPUT

9890 lm
12470 lm
17130 lm
DIMMING

Non Dimming
Standard 0-10V dims to 10%
DMX dims to 0.1%
RATING

Dry Location
CRI

75
85
93
FINISH

Black
White
CERTIFICATIONS
