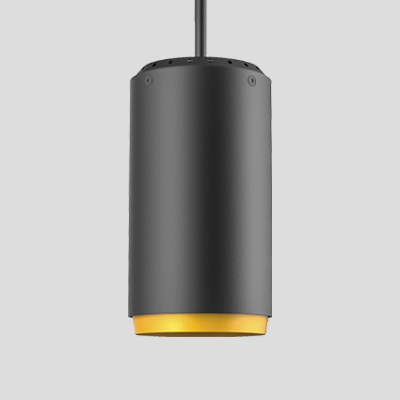

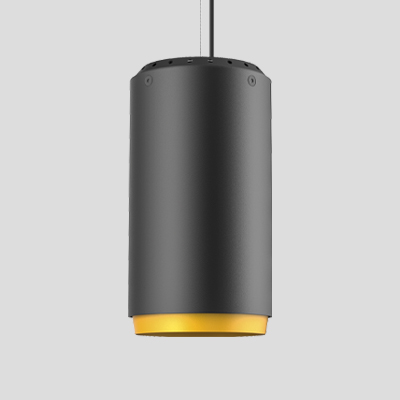

Zeta is an Aesthetic cylinder with a sleek and contemporary look suited for 15 – 30 ft. mounting height applications. Installed in Corporate spaces, Exhibition halls and Retail, this luminaire has seamless exterior finishing.

The five color trim options of Black, White, Silver, Copper and Gold gives you the flexibility to design this aesthetic luminaire according to the project and surroundings. All five color trim options require no adders and are also easily field replaceable.

DIMENSIONS

FEATURES
Aesthetic and Contemporary Design
This luminaire features an ultra low-profile design with a sleek exterior and capable of delivering up to 15,000 lumens. Ideal for projects between 15 – 30 ft. mounting heights, this luminaire has been installed in various high profile projects like atriums, theatres, and auditoriums.

Advanced Glare Control
The light engine features our most powerful core and has a 45 degree cut-off beam spread for a quiet design.

Field Changeable Trim
The five color trim options of Black, White, Silver, Copper, and Gold gives you the flexibility to design this aesthetic luminaire according to the project and surroundings and are also easily field replaceable.

DETAILS
MODEL

ZETA 10
WATTAGE

45 W
80 W
115 W
140 W
CCT

2700 K
3000 K
3500 K
4000 K
LUMEN OUTPUT

5138 lm
8962 lm
12517 lm
14734 lm
DIMMING

TRIAC dims to 1%
ECOsystem dims to 1%
Superior 0-10V dims to 1%
Standard 0-10V dims to 10%
DMX dims to 0.1%
RATING

Dry Location
CRI

85
93
COLOR TRIMS

Copper
Gold
Silver
Black
White
FINISH

Black
White
CERTIFICATIONS
