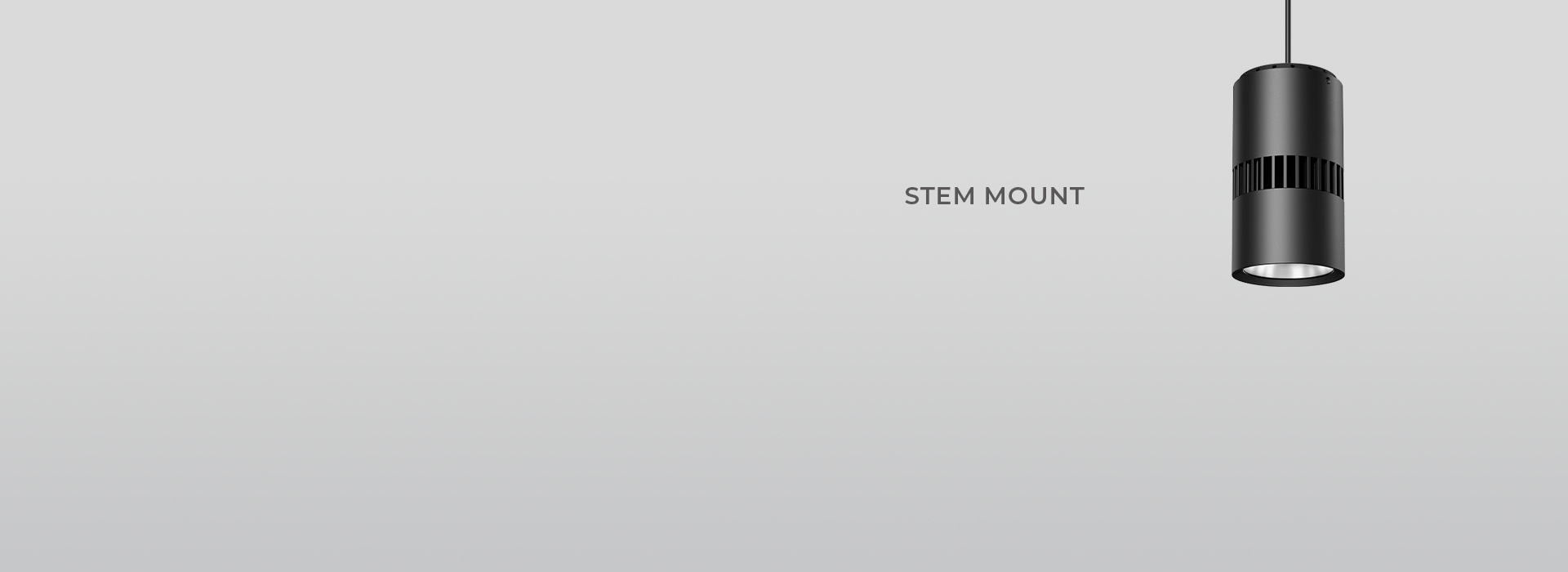

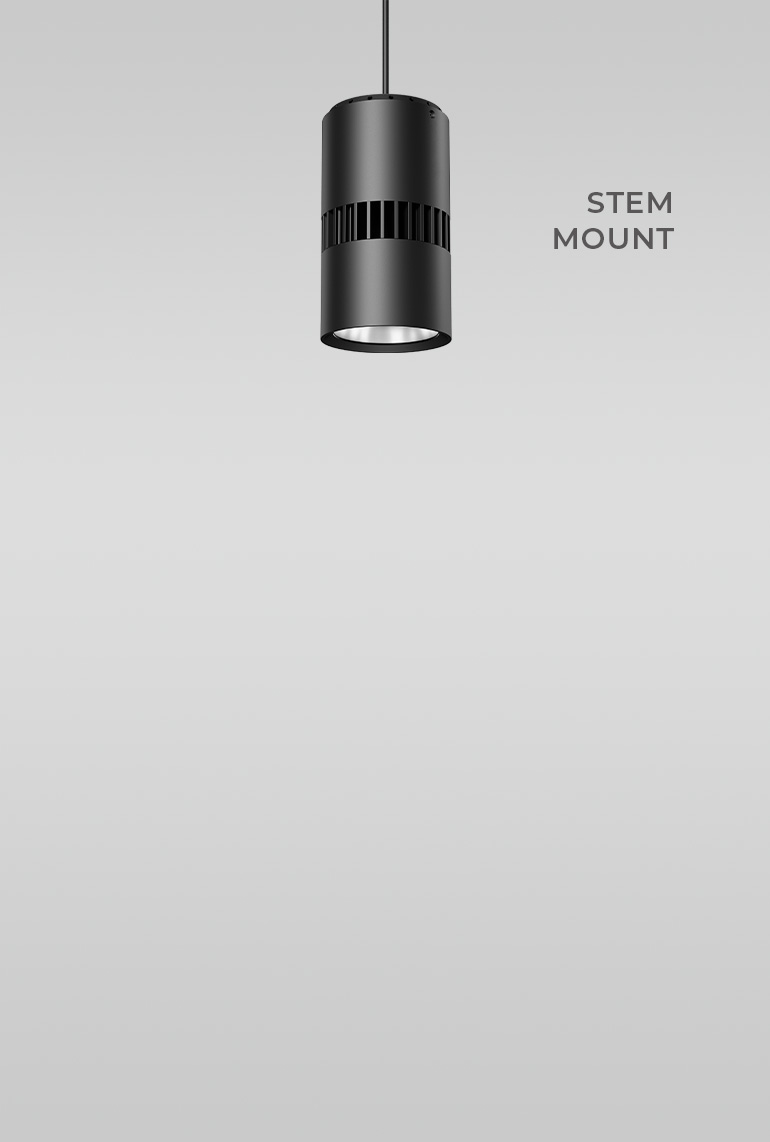

INSTALLATION GUIDE-Stem Mount
INSTALLATION GUIDE-Adjustable Cable
INSTALLATION GUIDE-Shroud Installation
IES FILES-Standard
REVIT FILES-Standard

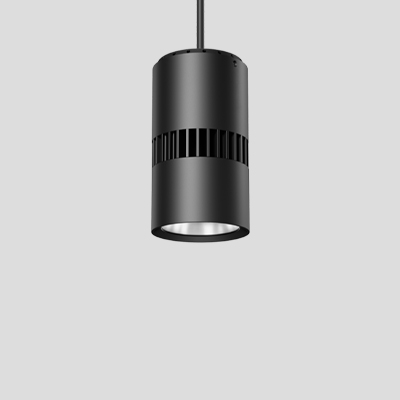

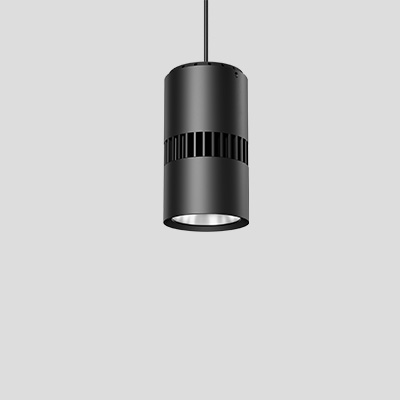

VELA 5 HIGH PERFORMING CYLINDER FROM METEOR LIGHTING

The Vela 5 cylinders are available with 4 beam angle options with no light spill on bevel. This luminaire is also embedded with our own proprietary patent-pending VX Driver that allows for flicker-free dimming.

Bringing a whole new dimension to sleek cylinder designs and the classic low bay shape, the Vela 5 has a delivered lumen range of 1,570 lm to 5,000 lm, and are perfect for open design concepts. The decorative shrouds can be installed tool-free and are field replaceable.

VELA 5 HIGH PERFORMING CYLINDER FROM METEOR LIGHTING

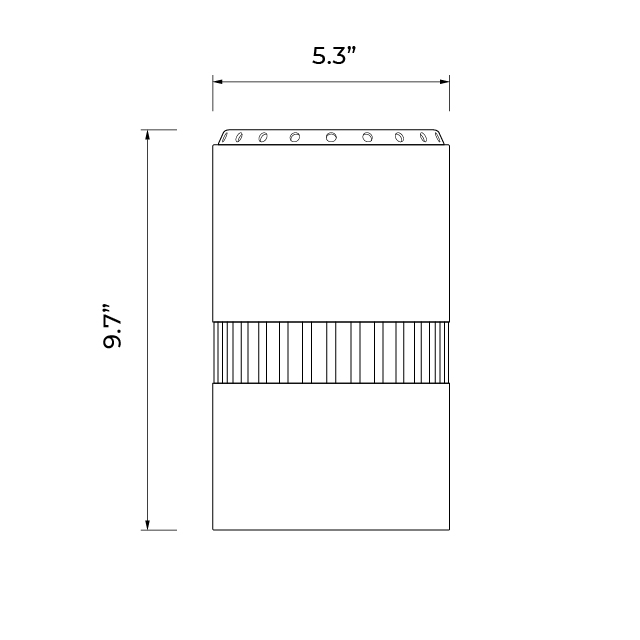

DIMENSIONS

Vela 5 Dimensions

FEATURES
A Transformative Cylinder

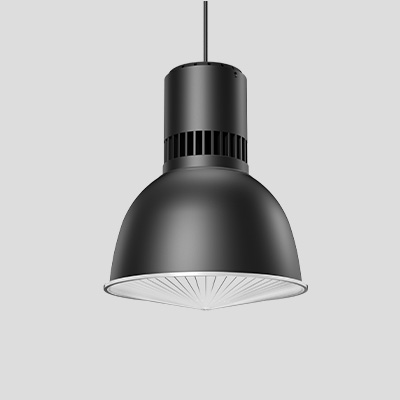

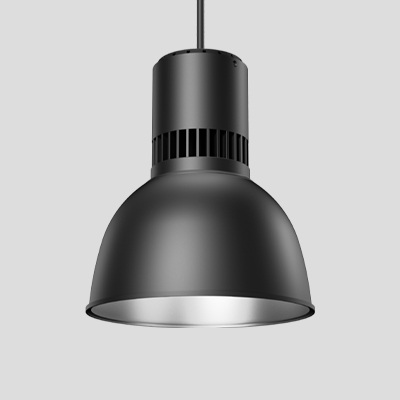

The Vela 5 can be transformed through pairing with either Aluminum or Polycarbonate shrouds for that quaint industrial look.

Faceted Reflector
Crisp beams and field angles are available with the Vela 5.

Performance and Visual Comfort
The luminaire has a deep-set reflector design with a secondary diffuser giving soft diffused illumination.

DETAILS
MODEL

VELA 5
TYPE

Standard Cylinder

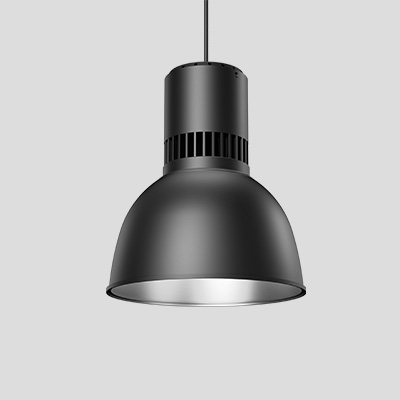

Aluminum Shroud 12/16

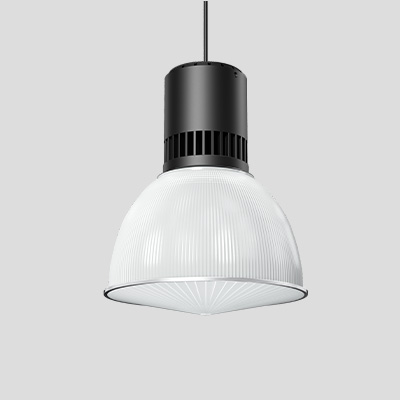

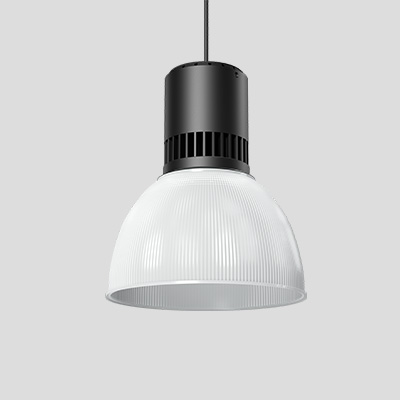

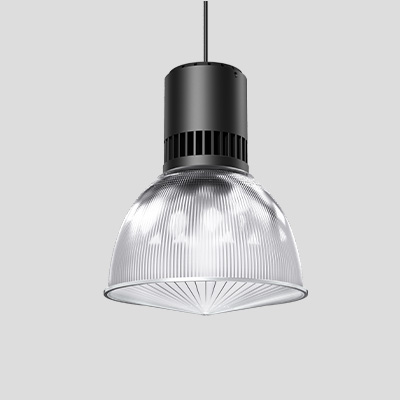

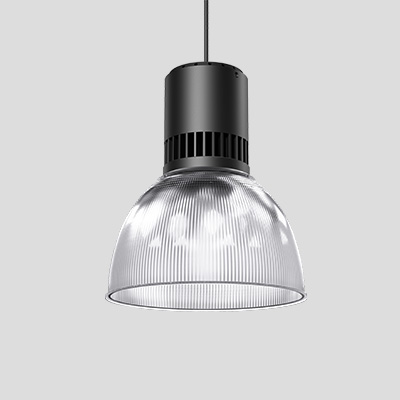

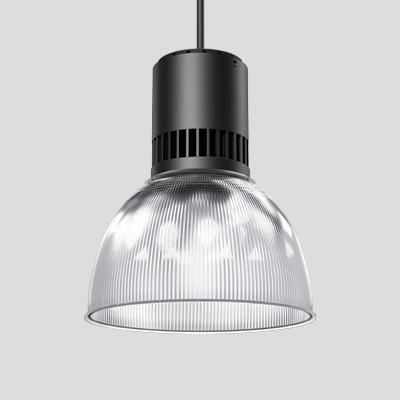

PC Shroud 12/16
WATTAGE

15 W
25 W
35 W
45 W
CCT

3000 K
3500 K
4000 K
LUMEN OUTPUT

1,570 lm
2,770 lm
3,810 lm
5,000 lm
DIMMING

Standard 0-10 V dims to Off
CRI

85
FINISH

Black
White
CERTIFICATIONS
