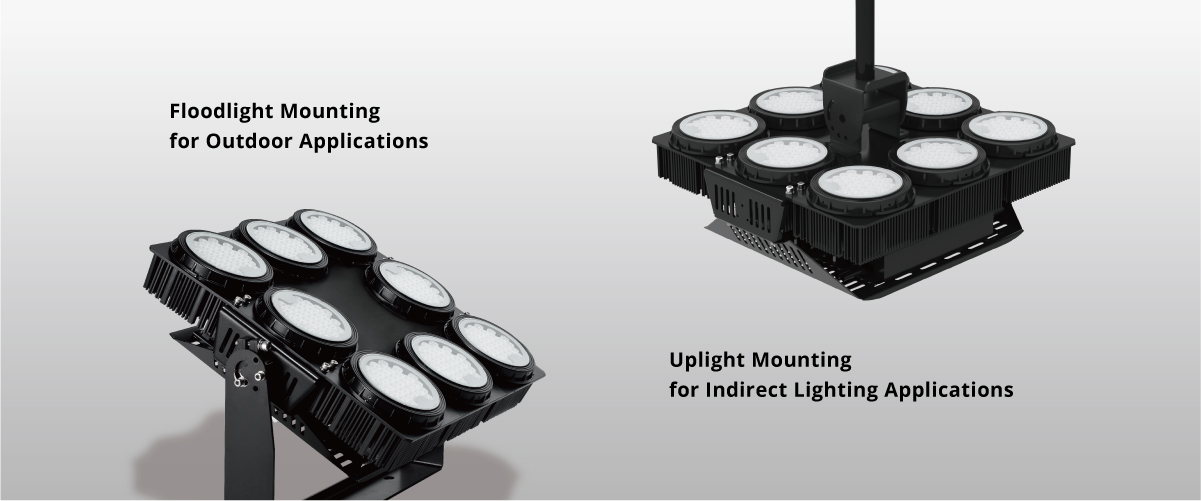

Suitable for a variety of mounting applications, this fixture is also configurable with floodlight mounting and uplight mounting options for any combination of modules.

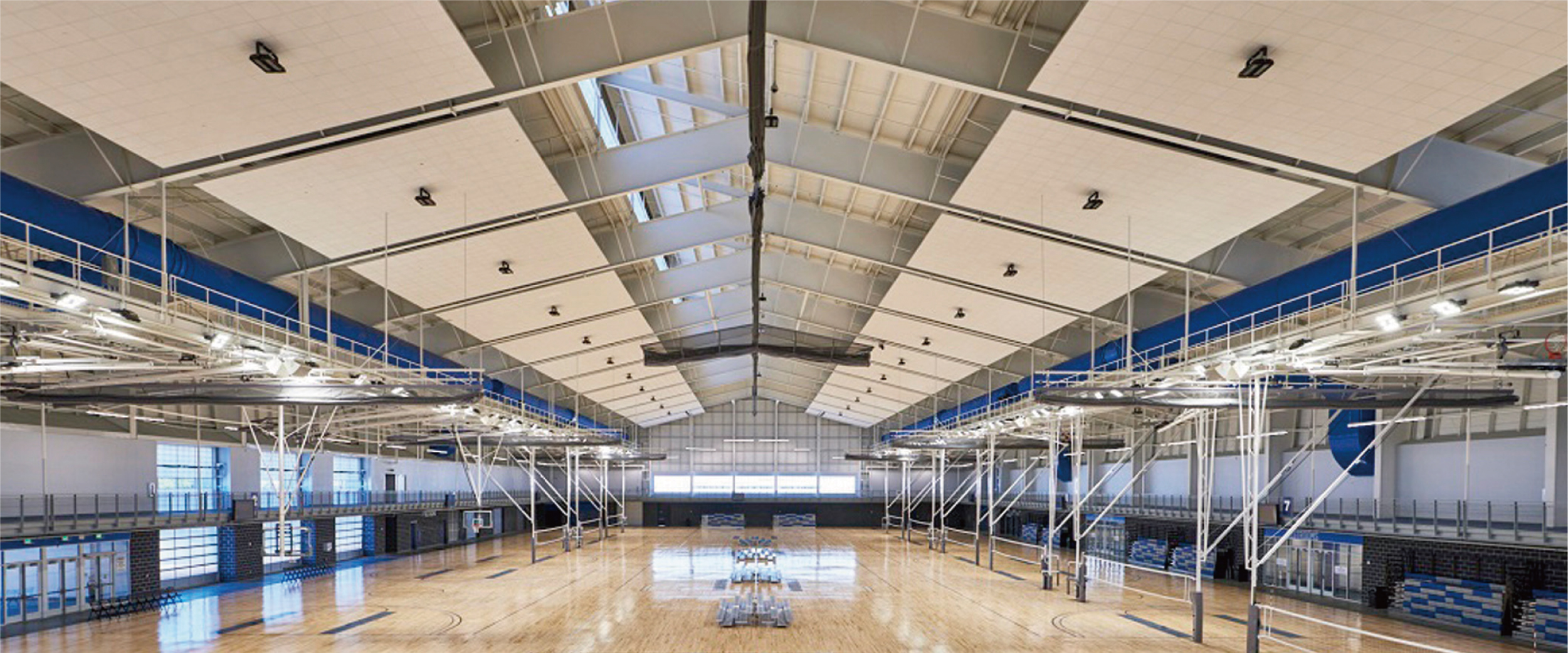

Suitable for a variety of project applications ranging from sports arenas, convention centers, airports, gymnasiums, natatoriums and manufacturing facilities. This fixture is also installed in the Amazon Spheres, a landmark in Seattle, WA.

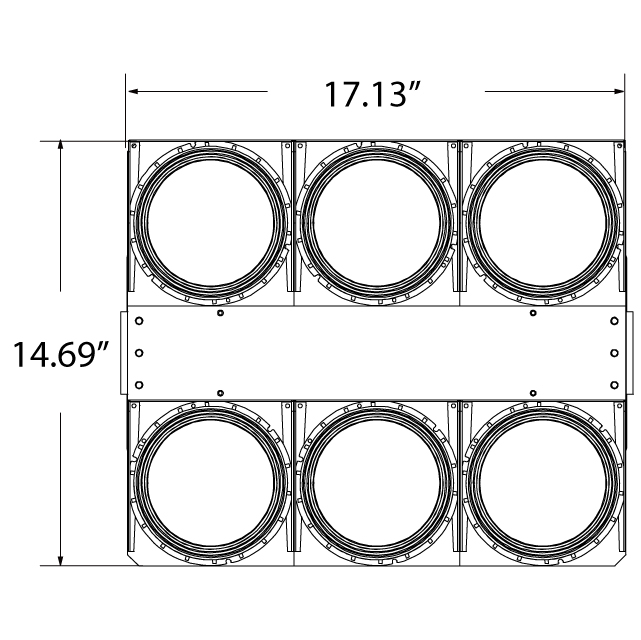

DIMENSIONS
FEATURES
Modular Design for Maximum Versatility
This luminaire is available in 4, 6 and 8 module configuration giving you ultimate flexibility to specify according to the desired foot-candles.
Small Light Engine with Big Output
A single Tetriss module is a 70 W - 5 inch light engine able to deliver 7,200 lm. Combined, at maximum configurations, this luminaire has a lumen package of up to 52,220 lm.
Innovative Thermal Management
Using the latest in cold-forging technology and heatsink design, this fixture is able to withstand outdoor, natatorium and other conditions.
DETAILS
MODEL
TETRISS
WATTAGE
70 W
280 W
420 W
560 W
CCT
3000k
4000k
5000k
LUMEN OUTPUT
6700 lm
26200 lm
39640 lm
52220 lm
DIMMING
Standard 0-10V dims to 10%
RATING
Outdoor Rated
Natatorium Rated
CRI
75
85
FINISH
Black
White
CERTIFICATIONS
