With a dual chamber design, the Light Engine and LED Driver is separated to compartments that improve thermal management for greater reliability and lifetime.

Boasting a installation history in over 500 projects, this luminaire was voted Top 5 Sleek Cylinder Downlights for High-Bay Spaces by Architectural Lighting Magazine.

DIMENSIONS

FEATURES
Sleek & Aesthetic Design

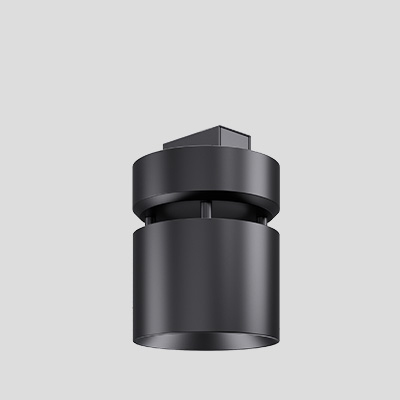

This dual chamber luminaire features an ultra low-profile and compact design, perfect for corporate spaces, multifunctional spaces, retail, lobbies and other indoor applications.

Award Winning Luminaire
Bestowed the Production Innovation award in 2016, this award winning luminaire has been specified in over 500 projects to date and has a wide array of beam spread available.

DLC & Damp Location Listed
The luminaire offers both Dry and Damp Listing with DLC rating, coupled with a host of accessories such as remote emergency pack.

DETAILS
MODEL

SIGNUM 8
WATTAGE

45w
CCT

2700k
3000k
3500k
4000k
5000k
LUMEN OUTPUT

3510 lm
3645 lm
3790 lm
4140 lm
4590 lm
DIMMING

TRIAC dims to 1%
ECOsystem dims to 1%
Superior 0-10V dims to 1%
Standard 0-10V dims to 10%
DMX dims to 0.1%
RATING

Dry Location
CRI

85
FINISH

Black
White
CERTIFICATIONS
