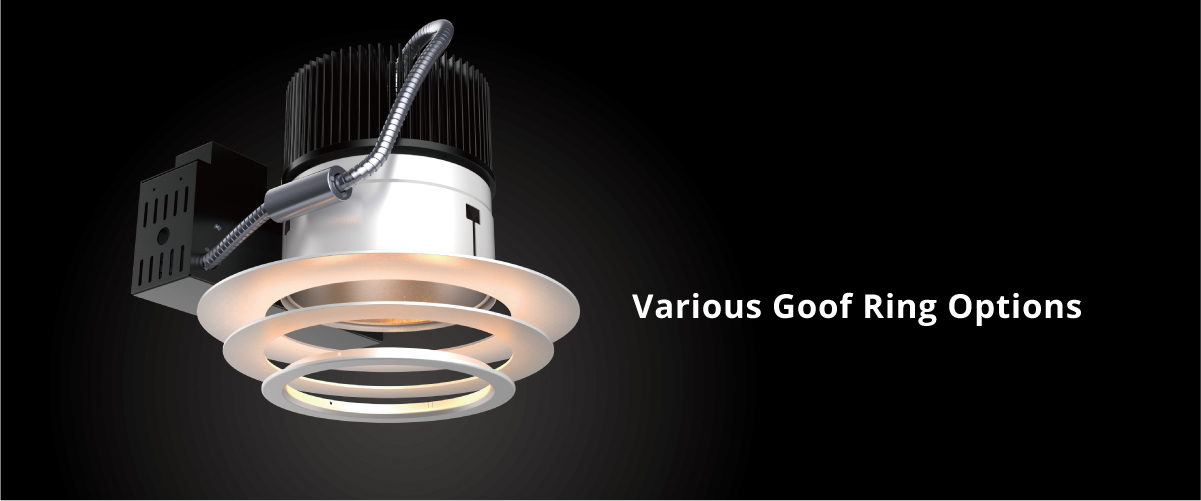

A perfect retrofit option with Goof Ring accessory up to 14-inch in diameter.

This luminaire was recognized by industry experts in the 2018 IES Progress Report.

DIMENSIONS

REV 8 Prime

FEATURES
Prime Replacement for Metal Halides
Boasting a 25,000 lumen package, this luminaire can directly replace 400/500 W Metal Halide fittings for mounting heights of 30ft. and above.

High Ceiling Retrofitting
When it comes to retrofitting high ceiling applications like airport terminals, this luminaire is the prime candidate to save on maintenance and energy costs.

Tunable White Compatible
Compatible with a variety of dimming options, this luminaire is also available with Tunable White technology from 2700 K - 6500 K.

DETAILS
MODEL

REV 8 PRIME
WATTAGE

185 W
225 W
CCT

2700 K
3000 K
3500 K
4000 K
LUMEN OUTPUT

21204 lm
24867 lm
DIMMING

TRIAC dims to 1%
ECOsystem dims to 1%
Superior 0-10V dims to 1%
DMX dims to 0.1%
RATING

Dry Location
CRI

85
FINISH

Black
White
CERTIFICATIONS
