REV Flex Prime
Adjustable and Versatile Recessed Downlight

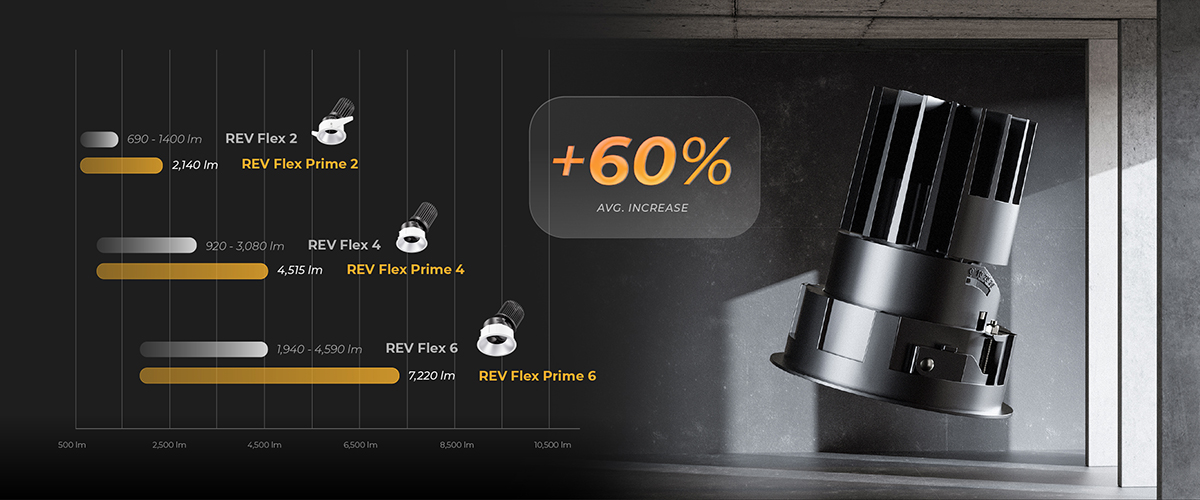

The new upgraded REV Flex Prime now delivers up to 7,220 lumens, a 60% performance boost across the series enabled by upgraded LEDs, a high-transmittance lens, and refined internal structure. It achieves higher efficiency and consistency while maintaining the iconic design of the REV Flex line.
The REV Flex Prime features an adjustable design that can rotate up to 359° and tilt to 30°, allowing convenient hot aiming for any installation. Its versatile form pairs with multiple trim styles, giving specifiers greater flexibility to meet a wide range of architectural lighting needs.

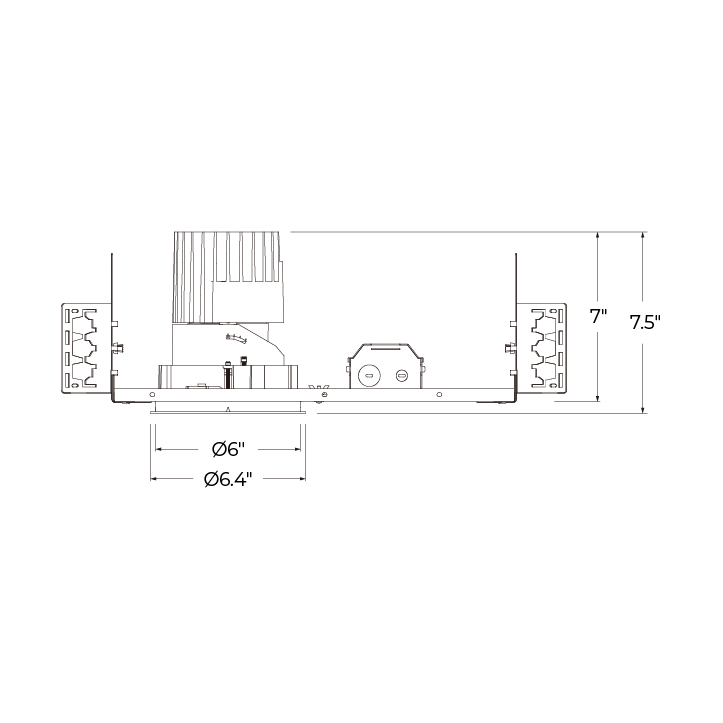

DIMENSIONS
FEATURES
For Higher Performance
The REV Flex Prime responds to market demand for more output from the popular REV Flex series, extending its capabilities while maintaining the same trusted design and form.
Advanced Control Systems
The REV Flex Prime series is compatible with a variety of dimming protocols including 0-10V, DALI, and DMX, offering maximum control to create a more comfortable and inviting atmosphere.
DETAILS
MODEL
REV Flex Prime
WATTAGE
20 W
40 W
60 W
CCT
2700 K
3000 K
3500 K
4000 K
LUMEN OUTPUT
2,140 lm
4,515 lm
7,220 lm
DIMMING
Standard 0-10V dims to 10%
Superior 0-10V dims to 1%
TRIAC Line-voltage phase control, dims to 1%
DALI dims to 1%
DMX dims to 0.1%
RATING
Dry Location
CRI
85
FINISH
Black
White
CERTIFICATIONS
