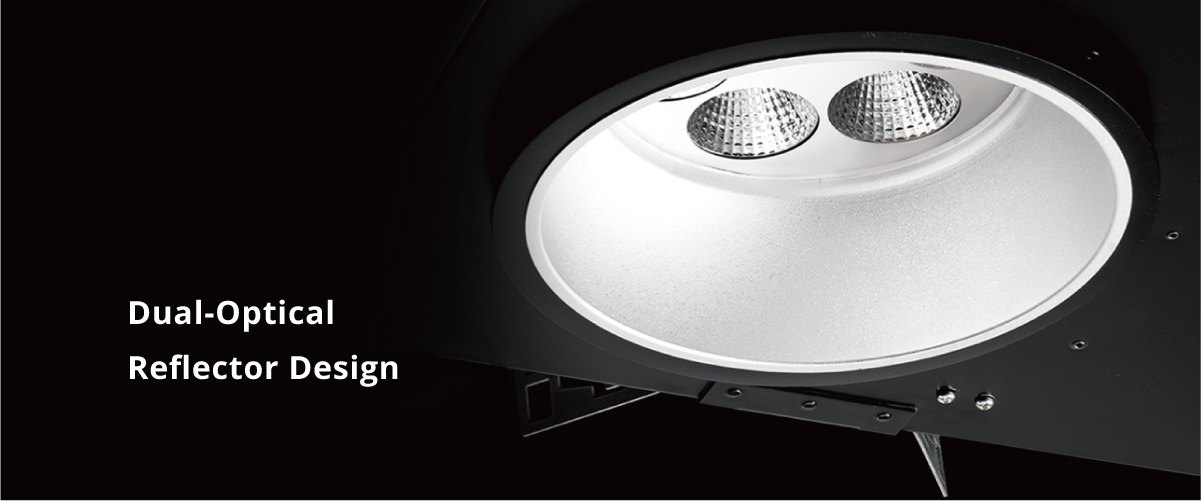

Designed for superior light distribution, this innovative reflector design controls beam spread with 92%+ reflectivity.

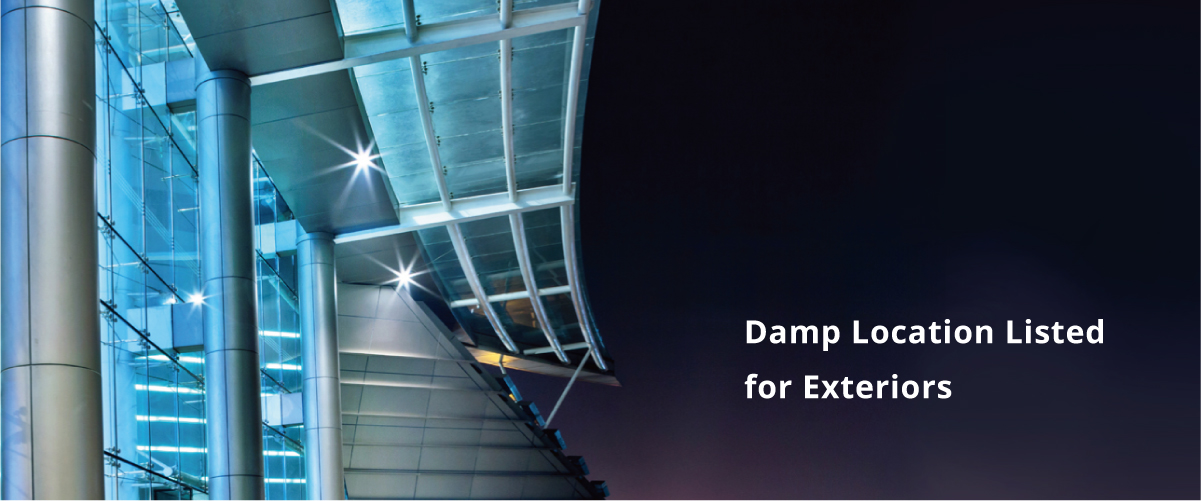

Special sealant and moisture protection allow this luminaire to be Damp Location rated and can be used in partially protected areas such as canopies and outdoor ceilings.

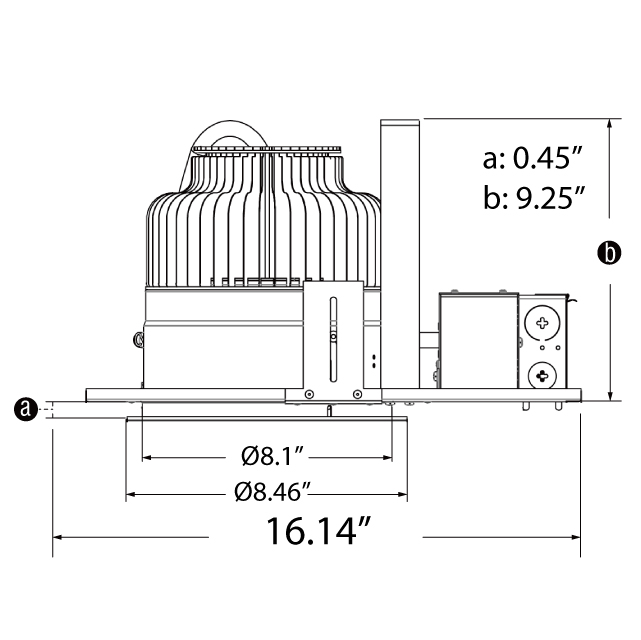

DIMENSIONS

FEATURES
Quiet Ceiling Design
Ultra low profile trim design makes this luminaire very quiet with superb glare control.

Industry-Leading Thermal Management
Unique fin design increases cooling performance by up to 18% more than traditional heatsink design.

Small Form Factor with High Output
This luminaire delivers up to 12,500 lm suited for 30 – ft. mounting height applications.

DETAILS
MODEL

8” REV
WATTAGE

95 W
125 W
145 W
CCT

2700 K
3000 K
3500 K
4000 K
LUMEN OUTPUT

8371 lm
10685 lm
12905 lm
DIMMING

TRIAC dims to 1%
ECOsystem dims to 1%
Superior 0-10V dims to 1%
DMX dims to 0.1%
RATING

Dry Location
CRI

85
93
FINISH

Black
White
Semi-Specular
CERTIFICATIONS
