ARCHI-COLOR

REV 6

Quiet Ceiling Design
High Lumen Recessed Downlight

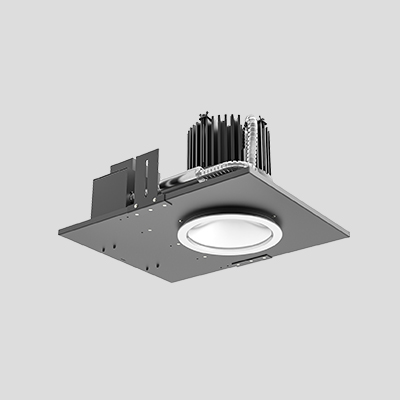

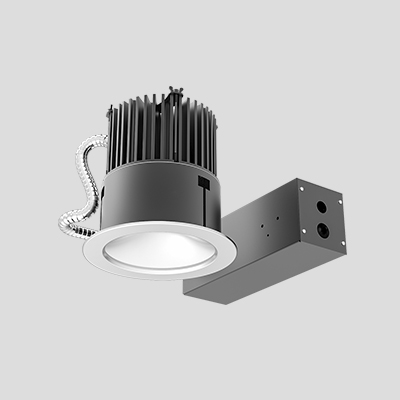

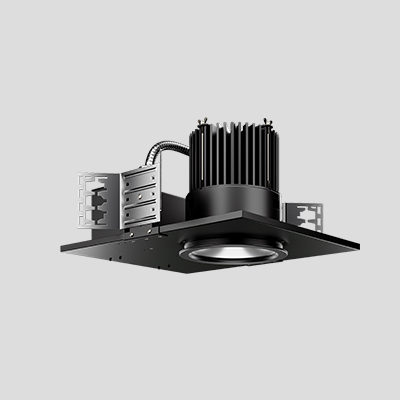

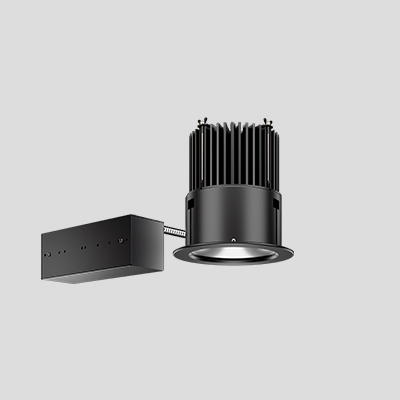

Rev_6_New_ConstructionRev_6_Retrofit
REV 6
Quiet Ceiling Design
High Lumen Recessed Downlight

Award Winning REVolutionary Downlights

Designed for elevated spaces, these downlights are meticulously crafted to provide unparalleled performance. Highly adaptable to diverse ceiling installations, they showcase a profound double optical reflector design that effectively reduces glare. The heat dissipation design ensures reliable operation in extreme conditions. With versatile color-changing capabilities, the REV Series prove ideal for a variety of applications in both new construction and retrofit configurations.

DIMENSIONS

FEATURES
Quiet Ceiling Design
Ultra low profile trim design makes this luminaire very quiet with superb glare control.

10 Minute Installation
Easily mount and install this luminaire in no time, keeping maintenance and labor costs low.

Tunable White Compatible
This luminaire can be color tuned from 2700 K – 6500 K and is compatible with a variety of dimming controls.

DETAILS
MODEL
6” REV
WATTAGE
40 W
60 W
80 W
100 W
CCT
2700 K
3000 K
3500 K
4000 K
5000 K
LUMEN OUTPUT
3990 lm
6490 lm
8040 lm
10450 lm
DIMMING
TRIAC dims to 1%
ECOsystem dims to 1%
Superior 0-10V dims to 1%
Standard 0-10V dims to 10%
DMX dims to 0.1%
RATING
Dry Location
CRI
75
85
93
FINISH
Black
White
CERTIFICATIONS
