Reizen Indirect Asymmetric Luminaire

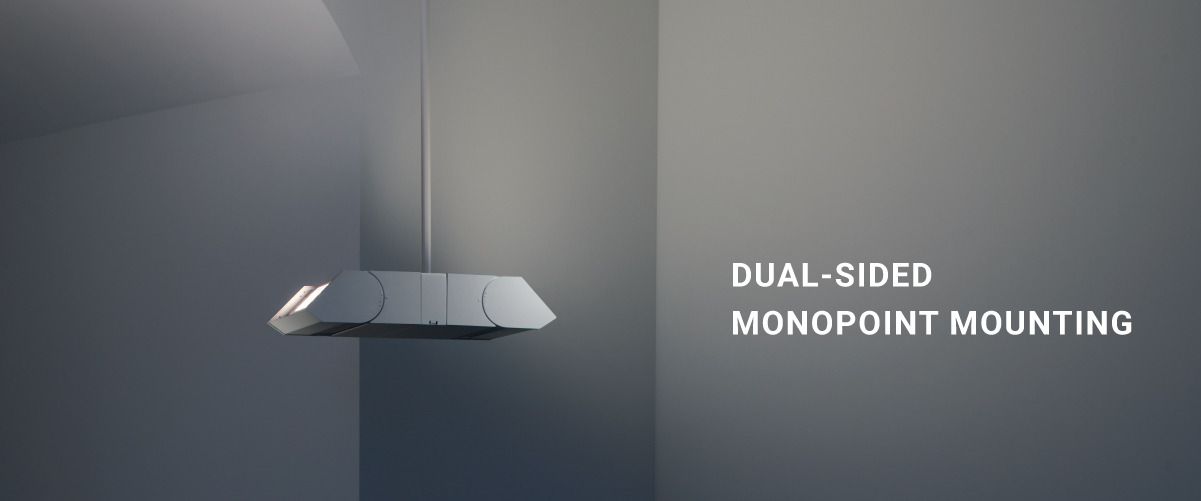

The Reizen can be mounted in a single or dual pendant form with 20 degrees of adjustability. This back to back, monopoint mounting option consolidates the number of fixtures used, giving great luminaire spacing and simplifies electrical requirements.

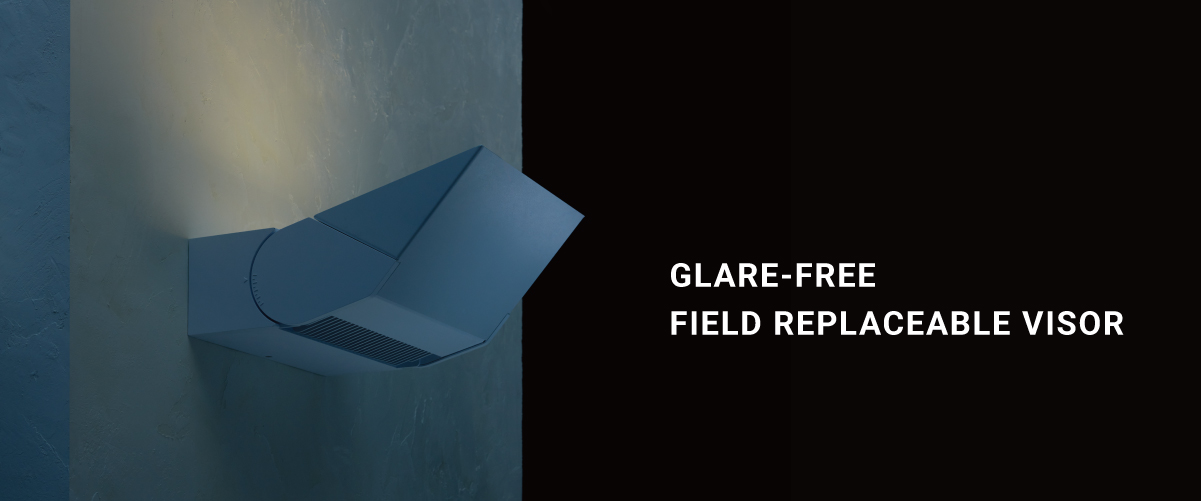

The Reizen has 2 form factors to choose from. A standard option, with a short, contemporary look, and a Visor option for a classic look that completely cuts off any glare from the occupant’s perspective.

Reizen Indirect Asymmetric Luminaire
DIMENSIONS

Reizen 150W Dimensions

FEATURES
Elevating High Ceilings
This luminaire boasts a sleek, contemporary design that performs up to 40,850 lm. Its small form factor allows it to blend seamlessly to the space, and is modular by design. Allowing it to match a wide range of lighting requirements for high ceiling spaces.

Light Shaping Prismatic Technology
Offering smooth, uniform asymmetric distribution, the Reizen uses the latest in light shaping prismatic technology whilst still maintaining a high 136 lm/w efficacy.

Color Changing
For indoor applications, the Reizen can be configured in Tunable white, and W + RGB, making this luminaire one of a kind. This can add a subtle yet dramatic flair to any project, in an indirect application.

DETAILS
LUMINAIRE

REIZEN
MODEL

110L
190L
210L
370L
CCT

3000 K
3500 K
4000 K
COLOR CHANGING

Tunable White
W + RGB
DIMMING

Standard 0-10V dims to 10%
DMX dims to 0.1%
RATING

Wet Location
CRI

75
85
FINISH

Black
White
CERTIFICATIONS
