Stunning 4 Inch Aesthetic Cylinder

This architectural luminaire comes with a lumen package range of 1,200 lm to 4,000 lm, being one of the most powerful in the market. The sleek form factor is aesthetic and is designed for a variety of low ceiling height applications.

Are power cords ruining your design? High ceiling spaces and open ceiling design are embedded in good design principles but power cord cylinders still dominate today's architecture. The ORION 4 uses the POWER LINE System for a a small difference that creates a big Aesthetic impact.

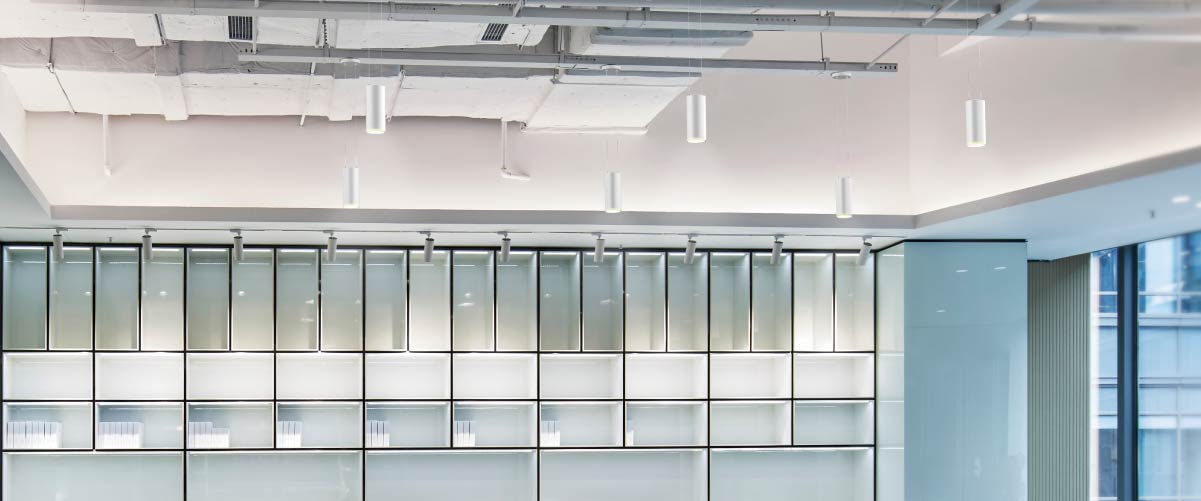

Elevate your Space
DIMENSIONS

Orion 4 Dimensions

FEATURES
Aesthetic and Contemporary
This luminaire features an overall low-profile exterior design with regressed optics for excellent glare control and Ideal for projects with low ceiling heights

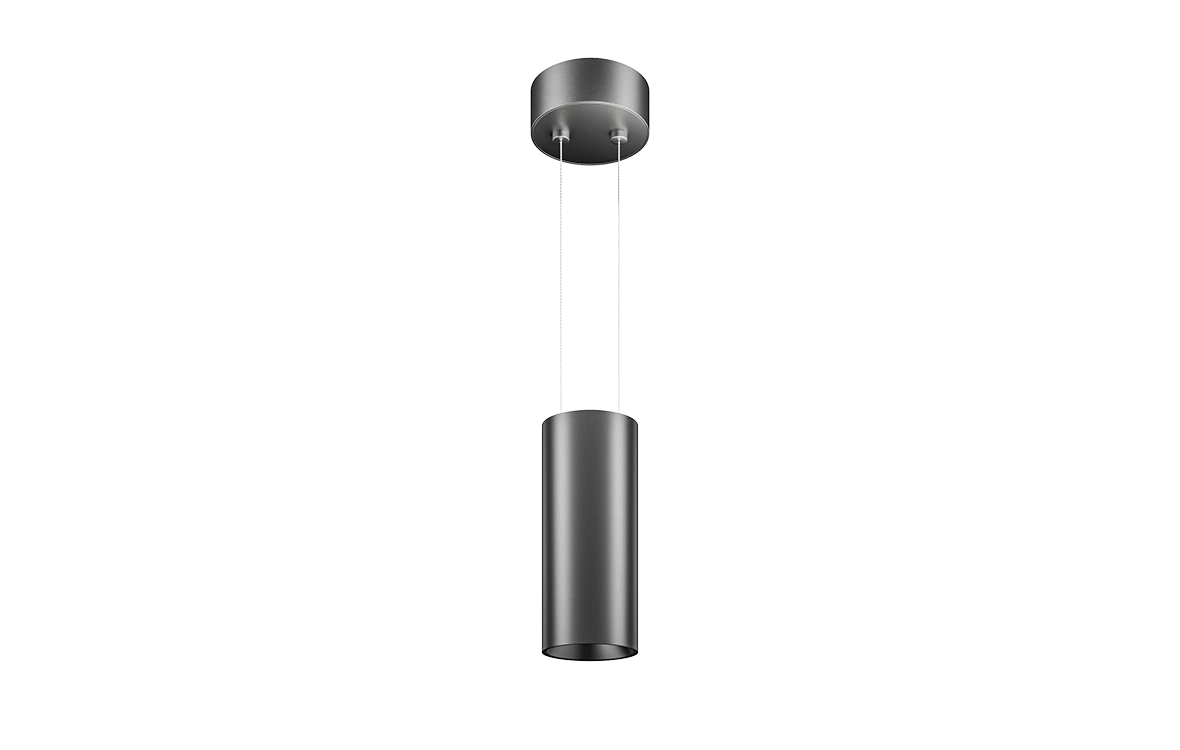

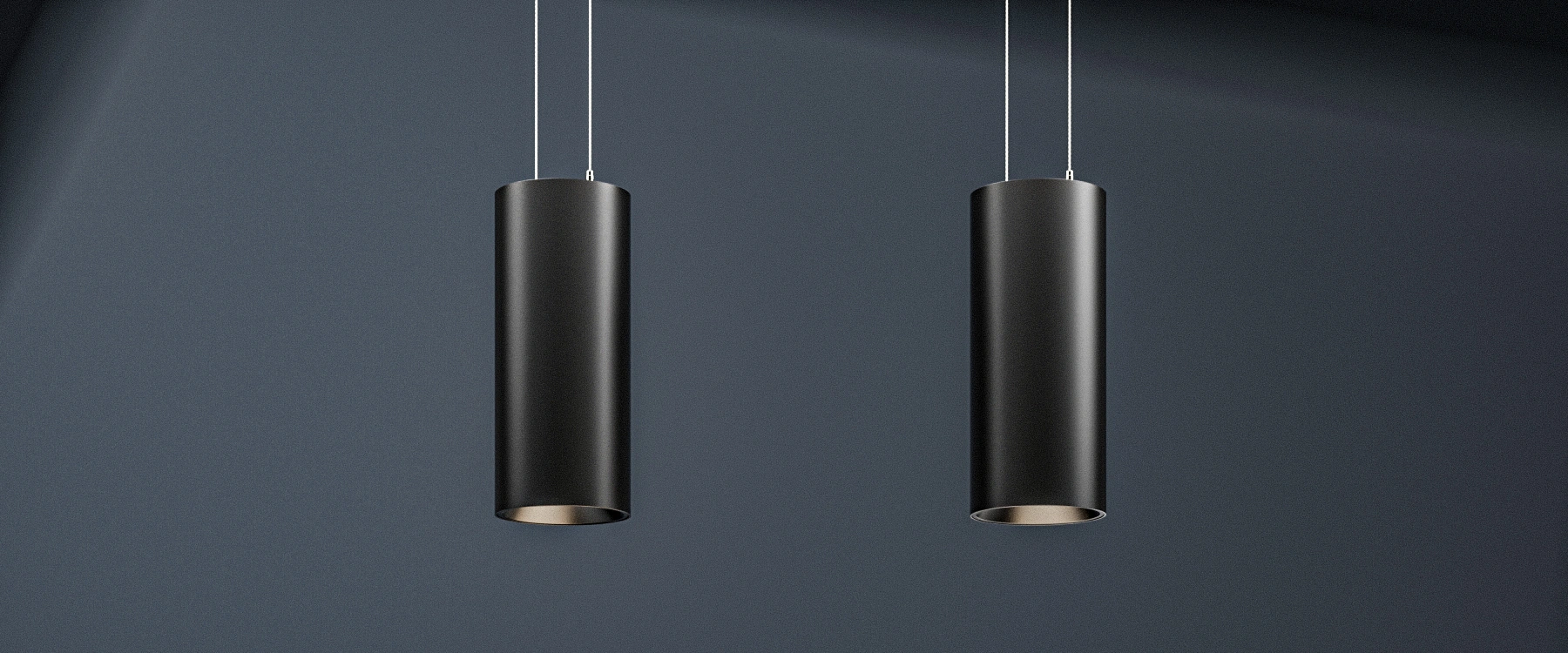

Power Cord Free Design
Our Power Line System technology allows for Power and Suspension in one. Making the Power Line Mount a clean and aesthetic option for open ceiling applications

Innovative Thermal Management
The luminaire features an innovative Thermal Beam Management design where the entire structure of the luminaire acts as a heat sink for better heat dissipation, reliability and life time

DETAILS
MODEL

ORION 4
WATTAGE

15 W
25 W
35 W
45 W
CCT

2700 K
3000 K
3500 K
4000 K
LUMEN OUTPUT

1200 lm
2030 lm
3060 lm
4000 lm
DIMMING

TRIAC dims to 1%
ECOsystem dims to 1%
Superior 0-10V dims to 1%
Superior 0-10V dims to 10%
DMX dims to 0.1%
RATING

Damp Location
CRI

85
93
FINISH

Black
White
Silver
CERTIFICATIONS
