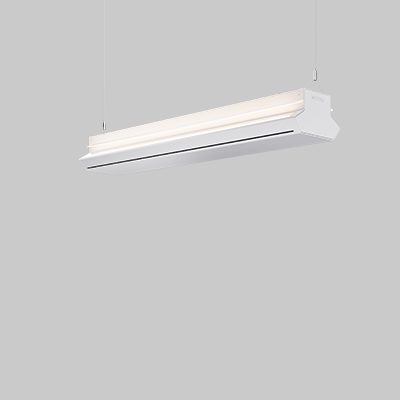

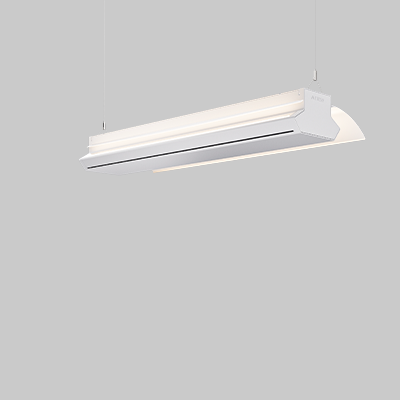

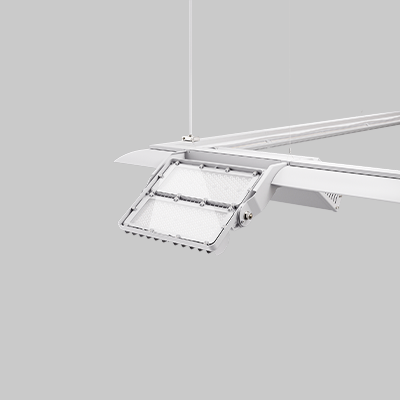

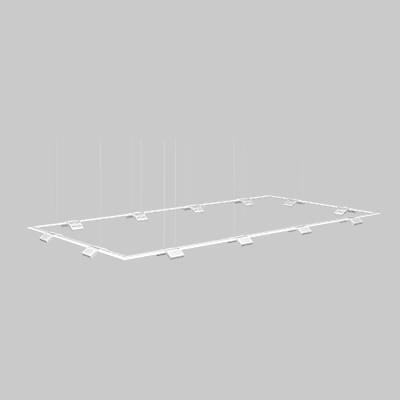

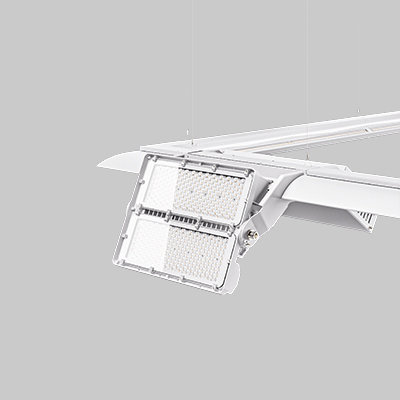

NovaLink_No wingNovaLink_Single SideNovaLink_Dual SideNovaLink system with Bolt NovaNovaLink system
NovaLink System
Integrated Lighting Infrastructure with Built-in Illumination

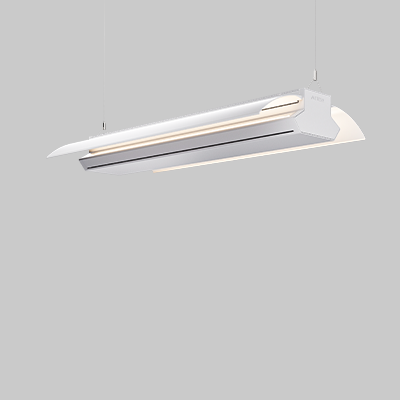

NovaLink_No wingNovaLink_Single SideNovaLink_Dual SideNovaLink system with Bolt NovaNovaLink system
NovaLink System

NovaLink is a high-performance indirect linear lighting system designed for large, high-ceiling environments. Built as a modular rail with seamless interlocking ends, it supports continuous runs and 90° corner connections for geometric layouts like squares, rectangles, and perimeter outlines. Each segment offers single- or dual-sided upward illumination with optional light-directing blades for downlight functionality—enabling a wide range of configuration possibilities within a clean, architectural form.

For larger projects that demand both ambient and high-output illumination, NovaLink pairs seamlessly with Meteor’s Bolt Nova—an IP66-rated, asymmetric indirect floodlight. In natatoriums and similar environments, NovaLink delivers soft, glare-free lighting for walkways and seating areas, while Bolt Nova provides powerful asymmetric lighting with even distribution across pools or courts. The integrated infrastructure reduces power drops and streamlines installation, ensuring cohesive, high-performance lighting throughout.

NovaLink System

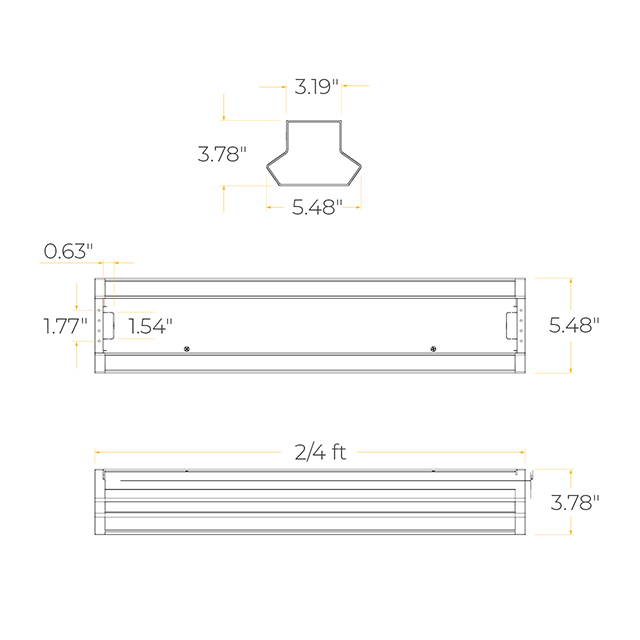

DIMENSIONS

NovaLink System Dimensions

FEATURES

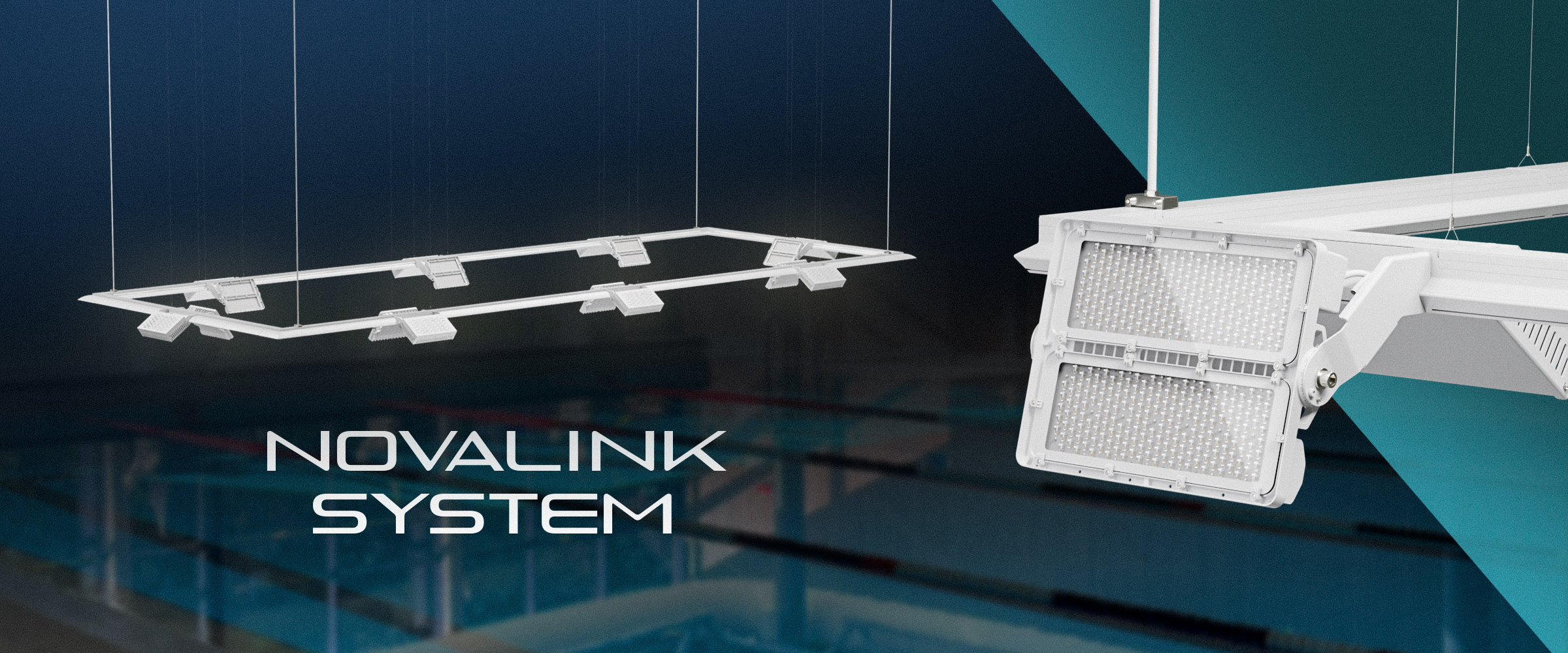

Bolt Nova Integration
Easily pairs with Bolt Nova floodlights for high-output performance; Bolt Nova can be mounted for either indirect uplight or direct downlight, and are available in both static white and RGBW versions.

High Output Performance
Delivers up to 33,600 lumens at 140 lm/W, providing powerful, energy-efficient illumination for large-scale projects.

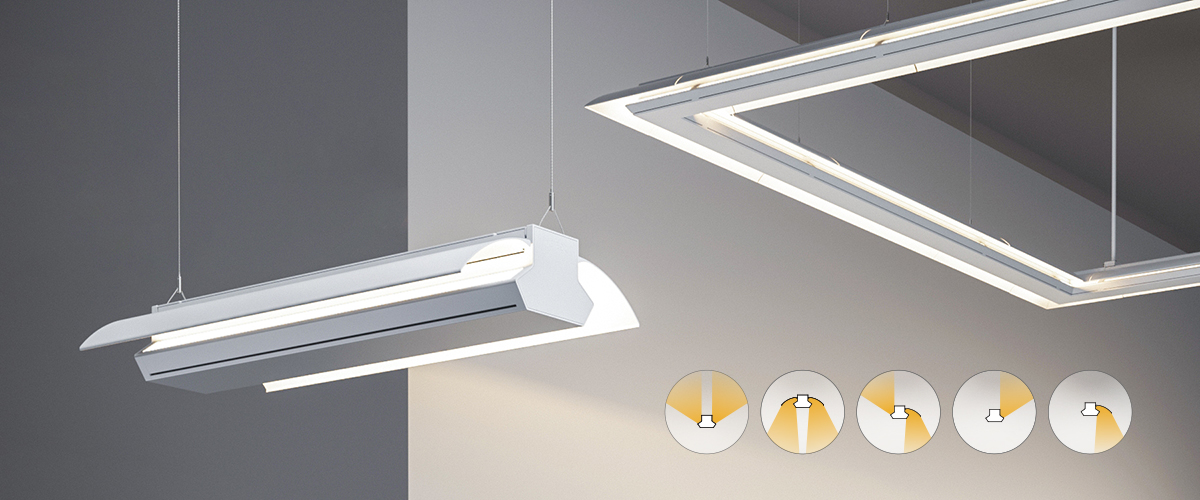

Optional Downlight Blades
For spaces with dark or non-reflective ceilings, high-reflectance blade accessories redirect uplight downward for a soft, glare-free illumination. Blades can be added wherever needed and are available in single-sided, dual-sided, or bi-directional configurations—allowing mixed uplight/downlight combinations within the same run.

Modular Setup
Flexible system with interlocking ends and illuminated corner blocks for seamless layouts—squares, rectangles, or perimeter runs. Non-illuminated NovaLink segments and corner blocks are also available to provide structural support where light is not needed.

IP66 & Corrosion-Resistant
Engineered for harsh environments with moisture, chlorine, and humidity, ideal for natatoriums and demanding indoor applications.

DETAILS
MODEL
NOVALINK SYSTEM
WATTAGE
120 W
240 W
CCT
3000 K
4000 K
5000 K
LUMEN OUTPUT
16,805 lm
33,610 lm
DIMMING
Standard 0-10V dims to 10%
RATING
Dry Location
Damp Location
Wet Location
CRI
85
FINISH
Black
White
CERTIFICATIONS
