The Power Line System both powers and suspends the luminaire and is fully field adjustable. At the heart of the Power Line System is the copper core that feeds power straight to the gripper.

The Duo has seamless exterior finishing with no external connectors and a hidden signal wire for DMX compatibility and separate Uplight and Downlight control.

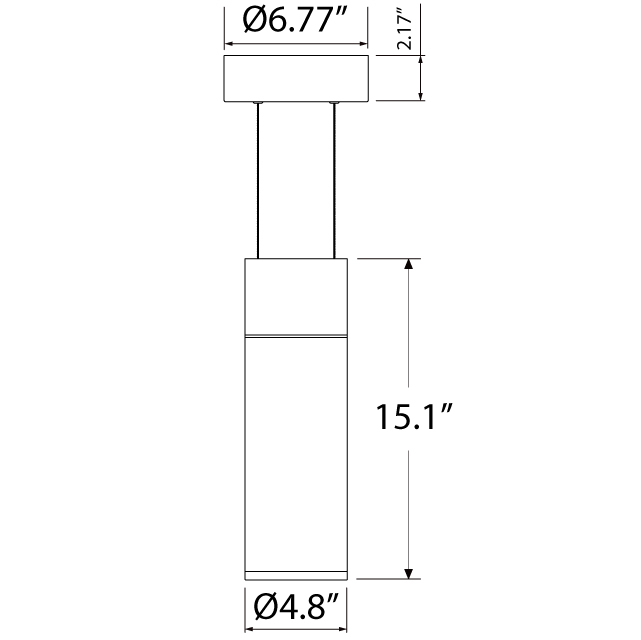

Dimensions

Features
Power Line System
Using a unique 36 DC Power Line System, Duo is an elegant, cable-free and aesthetic Up and Down lighting solution that seamlessly blends to the environment. The Power Line is completely safe for human touch and saves installation time getting rid of messy wires.

Variety of Configurations
The highly versatile Duo offers a variety of lumen packages, beam spreads for up and downlight and range of dimming compatibilities.

Architect Inspired Design
With design and aesthetics at the center of the Duo’s product design, it can transform into an art installation due to its mounting flexibility and the different configurations available.

Details

MODEL

DUO 4
UP WATTAGE

15 W
25 W
25 W
DOWN WATTAGE

15 W
25 W
50 W
CCT

2700k
3000k
3500k
4000k
LUMEN OUTPUT

3000 lm
4410 lm
6510 lm
DIMMING

TRIAC dims to 1%
ECOsystem dims to 1%
Superior 0-10V dims to 1%
DMX dims to 0.1%
RATING

Dry Location
CRI

85
93
FINISH

Black
White
