ARCHI-COLOR®

DEXT 3.0

Redefining High Ceiling Excellence

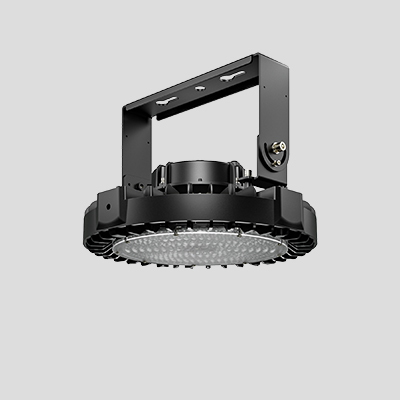

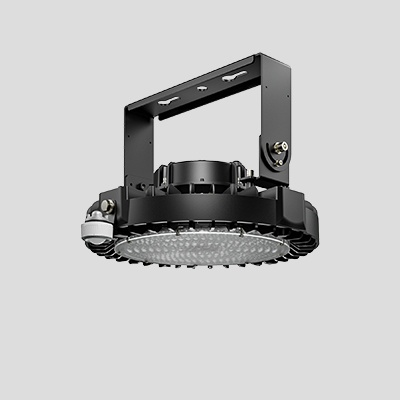

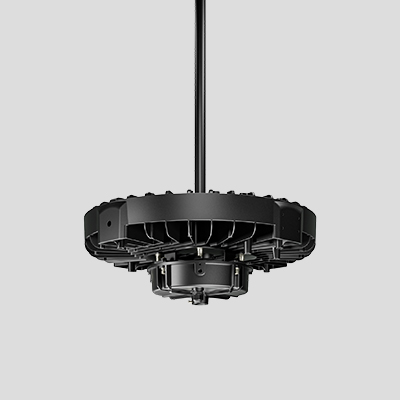

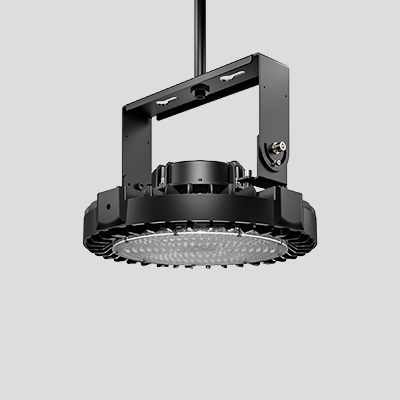

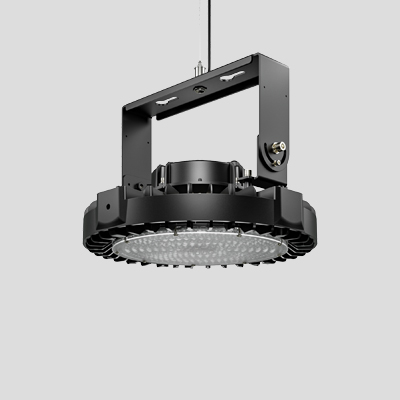

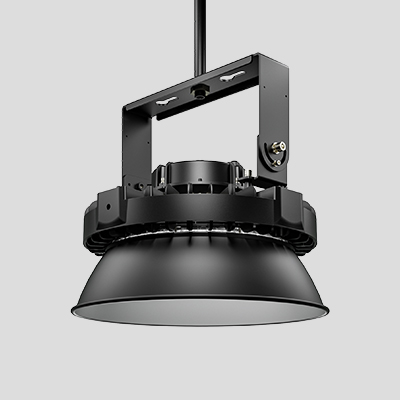

Dext 3.0_Downlight StemDext 3.0_Uplight StemDext 3.0_Adjustable CableDext 3.0_BracketDext 3.0_Aluminum ShroudDext 3.0_Occupancy Sensor
DEXT 3.0
Redefining High Ceiling Excellence
Dext 3.0_Downlight StemDext 3.0_Uplight StemDext 3.0_Adjustable CableDext 3.0_BracketDext 3.0_Aluminum ShroudDext 3.0_Occupancy Sensor

Built For Demanding Spaces

The next generation in high bay luminaires, Dext 3.0 delivers powerful performance with a lumen output of up to 74,000. This robust direct/indirect fixture is engineered for durability, featuring an IK10-rated wire guard and IP65 protection across the entire body. An enhanced airflow design supports efficient heat management, contributing to long-term reliability. Dext 3.0 is the ideal solution for high-demand environments, including industrial facilities, large indoor venuies, commercial spaces, and educational institutions.

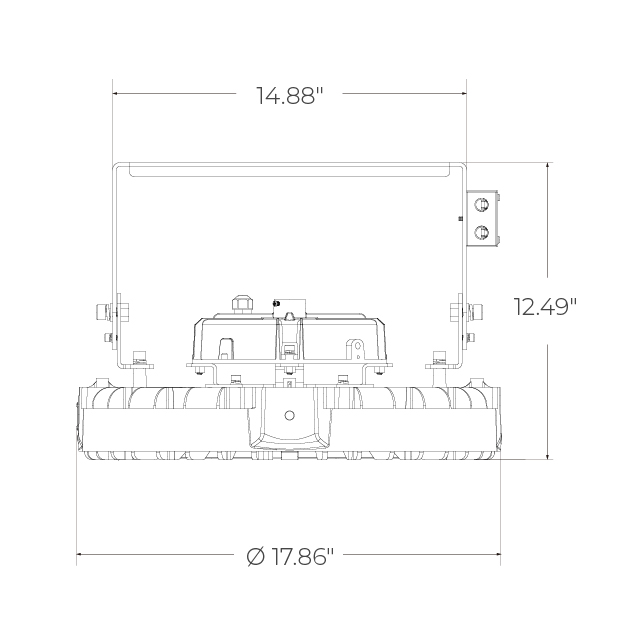

DIMENSIONS

Dext 3.0 Dimensions

FEATURES
Exceptional Lumen Output
Delivers up to 74,000 lumens, providing powerful illumination for even the largest and most demanding spaces.

Advanced Thermal Management
The dynamic heat control system regulates temperatures, ensuring consistent performance. Precision fins create multi-directional airflow, enhancing heat transfer and keeping the core temperature low without added bulk.

Multiple Mounting Ways
Dext 3.0 supports indirect lighting or floodlight use with an adjustable bracket, all in a streamlined setup with an integral driver for flexible installation.

DETAILS
MODEL
DEXT 3.0
WATTAGE
300 W
400 W
500 W
CCT
3000 K
4000 K
5000 K
LUMEN OUTPUT
45000 lm
59000 lm
74000 lm
DIMMING
Standard 0-10V dims to 10%
RATING
Dry Location
Damp Location
Wet Location
CRI
85
FINISH
Black
White
CERTIFICATIONS
