DOWNLOADS
SPECIFICATION-Standard
SPECIFICATION-Outdoor/Natatorium
INSTALLATION GUIDE-150W Bracket
INSTALLATION GUIDE-220W / 280W Bracket
INSTALLATION GUIDE-440W / 560W Bracket
INSTALLATION GUIDE-EMP Wiring Diagram
INSTALLATION GUIDE-Visor
INSTALLATION GUIDE-Baffle
IES FILES-Standard
REVIT FILES-Standard

This fixture can be easily tilted and rotated to match each unique project surrounding for a more even and blended light distribution.

This fixture is IP 65 Wet Location Listed and is suitable for outdoor and harsh environments.

DIMENSIONS

Meteor Lighting Bolt Series Dimensions

FEATURES
Performance with Small Form Factor
This fixture delivers a lumen package range of 13,500 lm to 70,800 lm and delivers up to 130 LPW and is DLC rated.

Technology Driven Fixture
This fixture is embedded with our proprietary VX driver for video flicker-free, supporting super slow motion replays and HDTV live broadcasting.

Durable for Harsh Environments
With both Outdoor and Natatorium ratings, this fixture can be buffed with special coating, sealant and wiring for long term operation in harsh environments.

DETAILS
MODEL

BOLT
WATTAGE

150 W

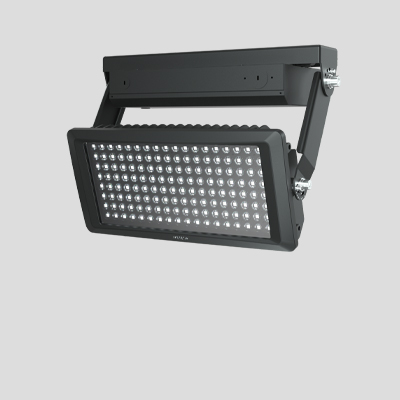

220 W
280 W

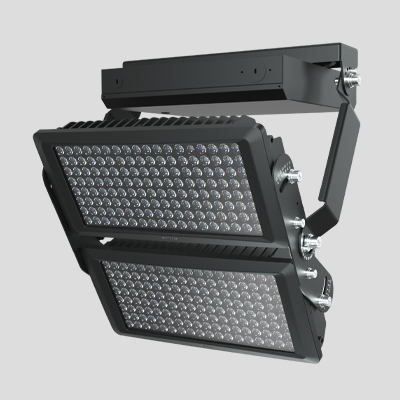

440 W
560 W
CCT

3000k
4000k
5000k
LUMEN OUTPUT

16120 lm
29274 lm
34505 lm
51306 lm
68340 lm
DIMMING

TRIAC dims to 1%
ECOsystem dims to 1%
Superior 0-10V dims to 1%
Standard 0-10V dims to 10%
DMX dims to 0.1%
RATING

Dry Location
Outdoor Rated
Natatorium Rated
CRI

75
85
FINISH

Black
White
CERTIFICATIONS
