DOWNLOADS
SPECIFICATION-Standard
SPECIFICATION-Outdoor/Natatorium
SPECIFICATION-ColorflipTM Tunable White
SPECIFICATION-ColorflipTM W+RGB
SPECIFICATION-ColorflipTM Warm Dim
INSTALLATION GUIDE-Stem
INSTALLATION GUIDE-Adjustable Cable
INSTALLATION GUIDE-EMP Wiring Diagram
IES FILES-Standard
IES FILES-W+RGB
IES FILES-Warm Dim
REVIT FILES-Standard

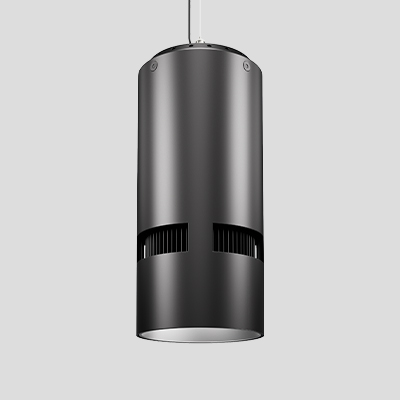

Suited for a wide range of applications including schools, offices, colleges, auditoriums and convention centers. Compatible with our proprietary Colorflip Tunable White Technology, this luminaire can be color tuned from 2700 K - 6500 K.

Available in both Outdoor and Natatorium ratings, this luminaire offers versatility and convenience.

DIMENSIONS

FEATURES
The Most Powerful 10 inch Downlight in the Market
Packing a 25, 000 lumen package, this luminaire is the most powerful 10 inch cylinder in the market capable of reaching up to 75 ft. mounting heights. This luminaire features our most powerful light engine core and debuted at Lightfair 2018

Aesthetic Double Reflector Design
With such a powerful luminaire, optimum glare control is important and is done through a double reflector design in the housing trim as well as the LED

Outdoor and Natatorium Rated
No matter the type of project, this luminaire has all the basis covered and has been recognized by the IES Progress Report Award and Product Innovation Award in 2018

DETAILS
MODEL

ATRIA 10
WATTAGE

80 W
110 W
140 W
180 W
220 W
CCT

2700 K
3000 K
3500 K
4000 K
LUMEN OUTPUT

8454 lm
11750 lm
15880 lm
21200 lm
24867 lm
DIMMING

TRIAC dims to 1%
ECOsystem dims to 1%
Superior 0-10V dims to 1%
Superior 0-10V dims to 10%
DMX dims to 0.1%
RATING

Outdoor Rated
Natatorium Rated
CRI

85
93
FINISH

Black
White
CERTIFICATIONS
