MODULAR DIRECT/ INDIRECT LIGHTING TRUSS SYSTEM

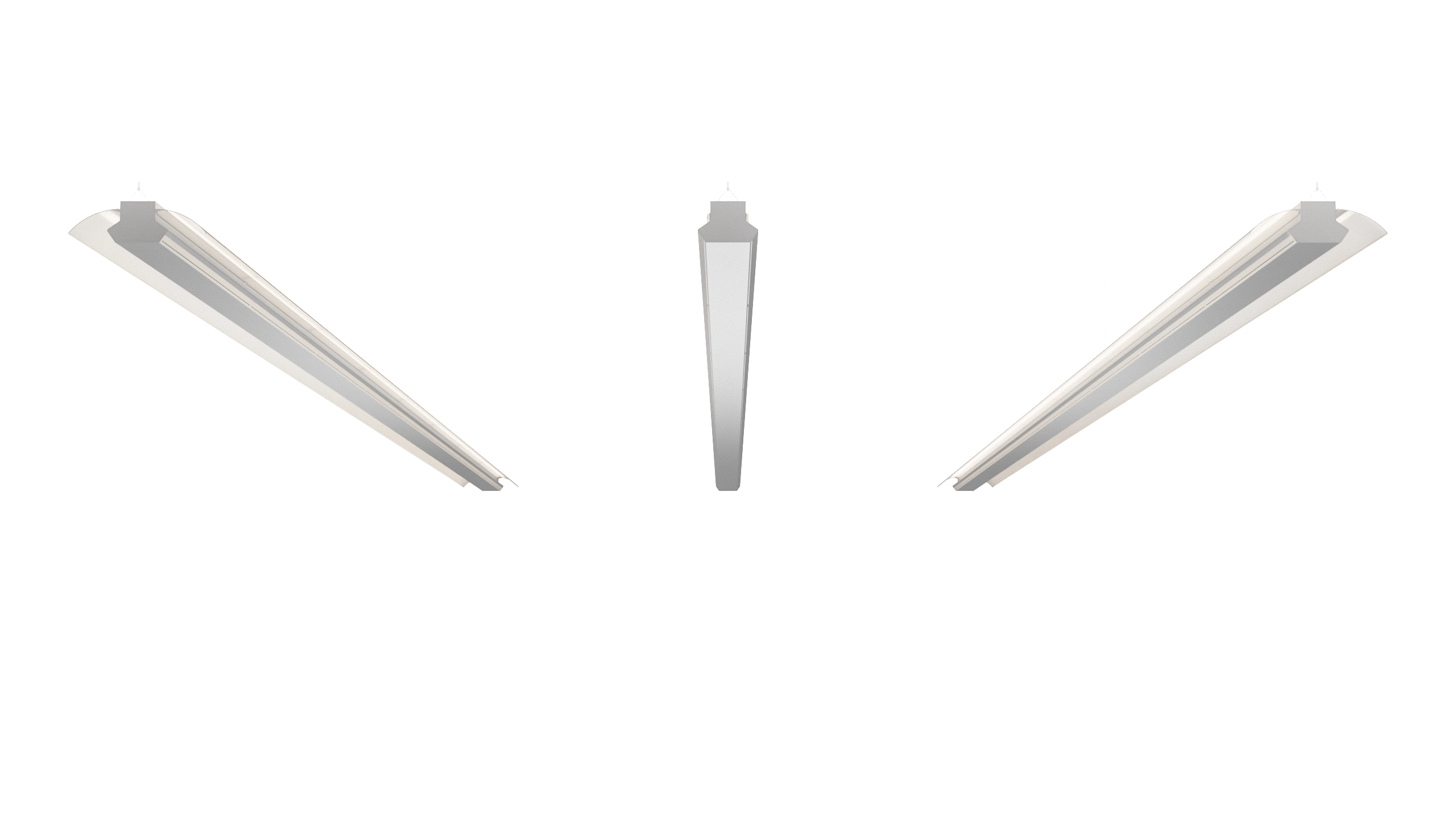

NovaLink is a modular suspended lighting truss system that combines performance and simplicity into one clean, streamlined solution. Available in 2 ft and 4 ft segments, its sleek linear rails feature concealed wiring for a clean aesthetic and fast, efficient installation. NovaLink supports multiple configurations, with illuminated segments for direct or indirect lighting and non-illuminated segments that provide structural continuity.
WATCH THE INTRO VIDEO

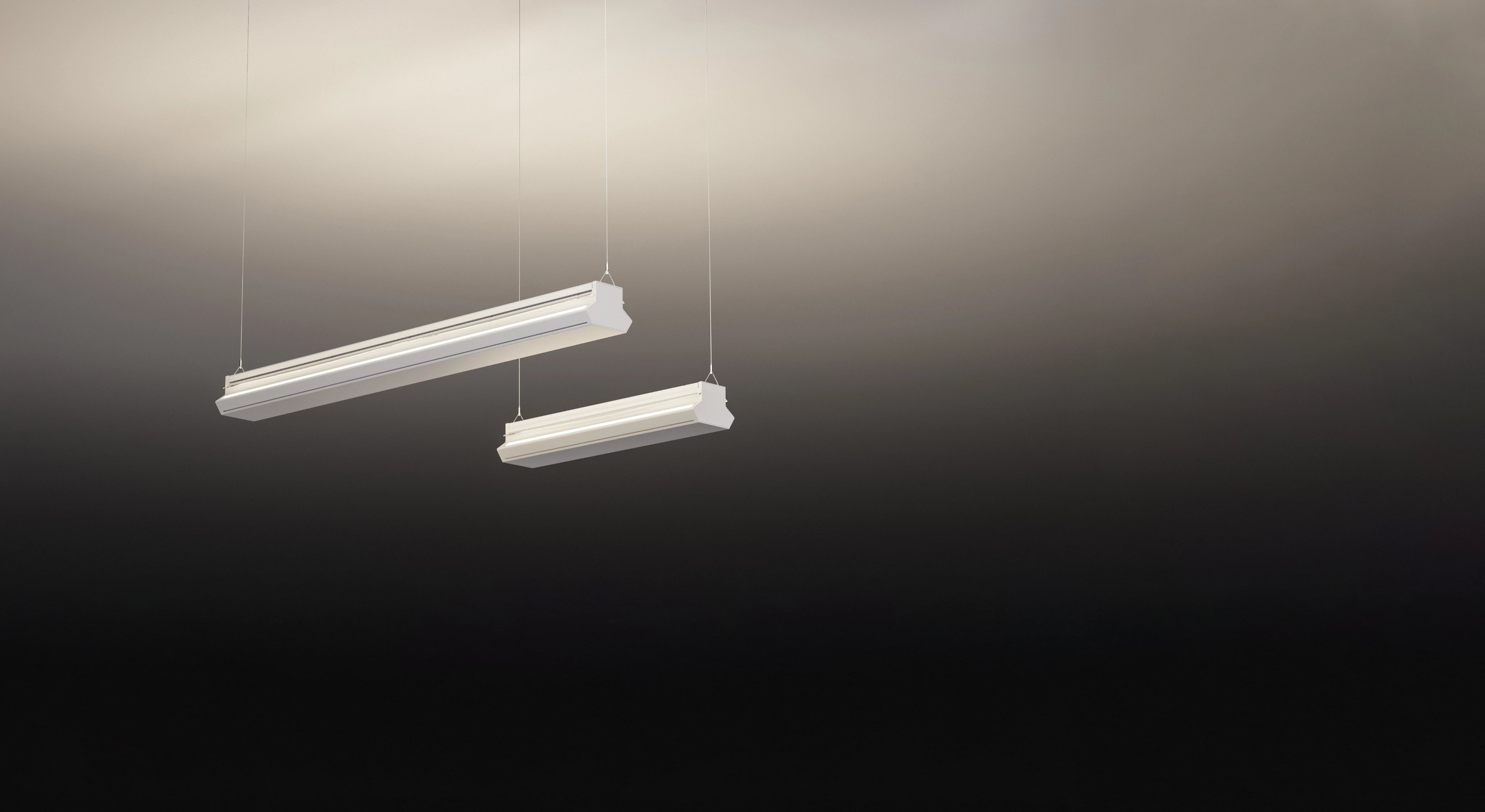

2 FT & 4 FT SEGMENTS
NovaLink sets itself apart with exceptional performance, delivering up to 8,400 lumens per foot at 140 lm/W—making it one of the highest-performing linear systems on the market. Built with IP66 protection, it is engineered to withstand demanding environments while maintaining reliable output and efficiency.
Powerful
8,400 lm/ft
Efficient
140 lm/W
NovaLink’s dual-sided upward illumination spans beyond 180°, creating a soft, even ceiling glow.
This wide distribution reduces shadows and delivers balanced, comfortable uplight across large spaces.
DOWNLIGHT BLADE
For spaces with dark or non-reflective ceilings, a high-reflectance blade accessory redirects light downward, providing soft and glare-free direct illumination.
DIRECT/INDIRECT COMBINATIONS
Blades can be placed as needed and are offered in single-sided, dual-sided, or bi-directional options—enabling uplight, downlight, or mixed distributions within the same continuous run.
Dual Uplight
Dual Downlight
Bi-directional
Single Uplight
Single Downlight

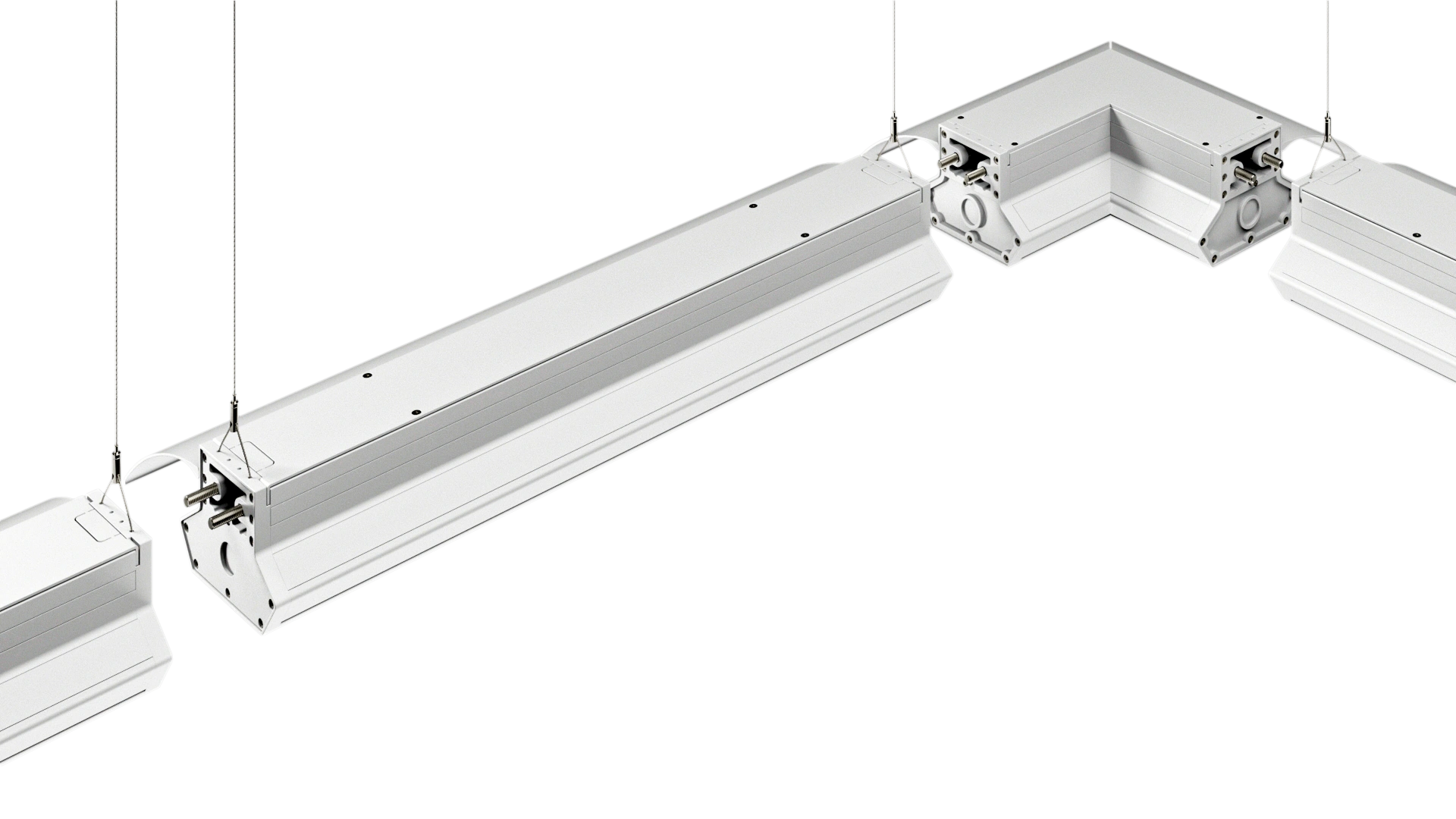

MODULAR INTERLOCKING ENDS

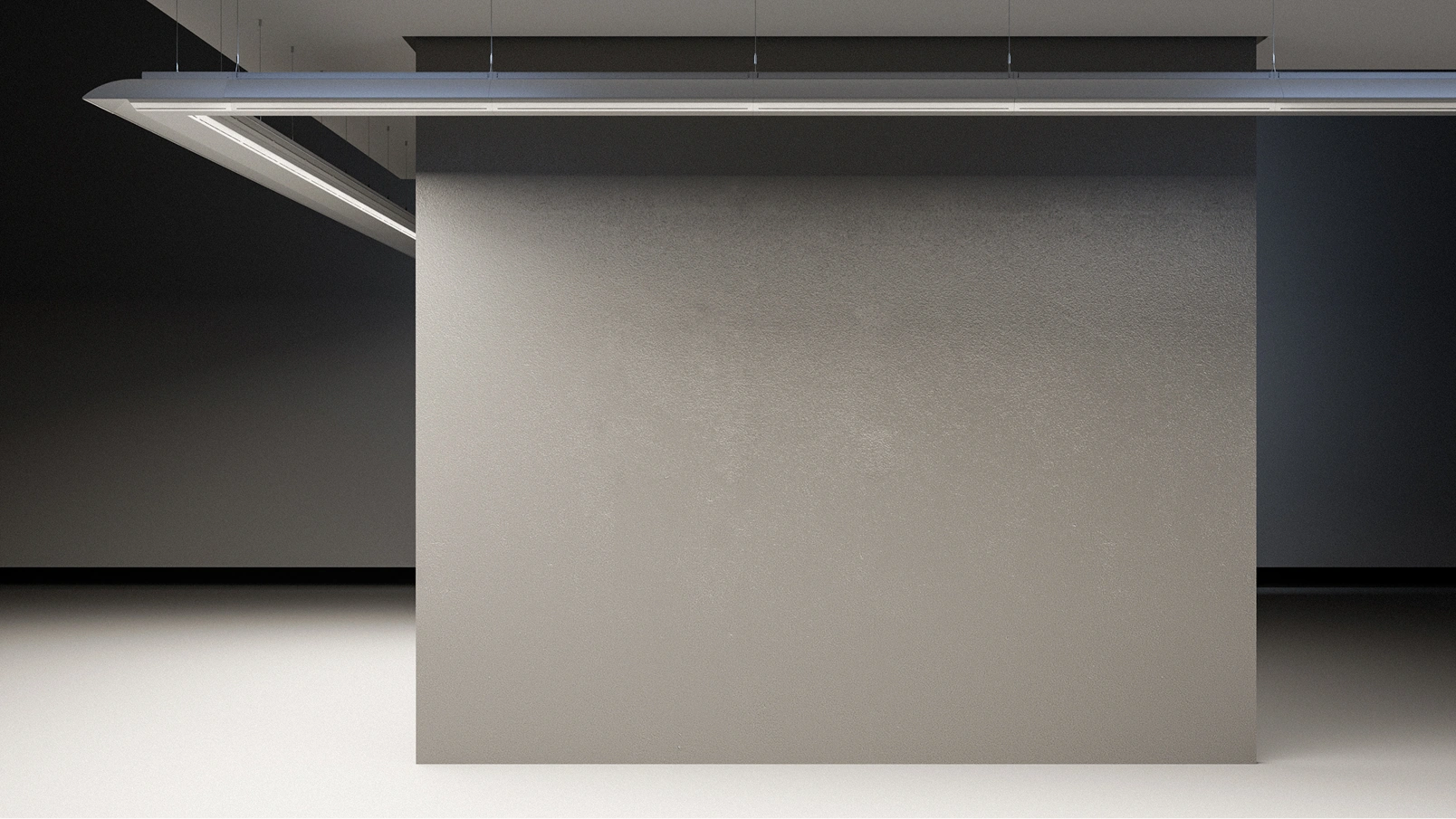

NovaLink’s modular rail system is designed to interconnect seamlessly, allowing longer runs and flexible layout design. The concealed connections maintain electrical continuity, minimize visible joints, and reduce hardware—streamlining installation while preserving clean ceiling lines.

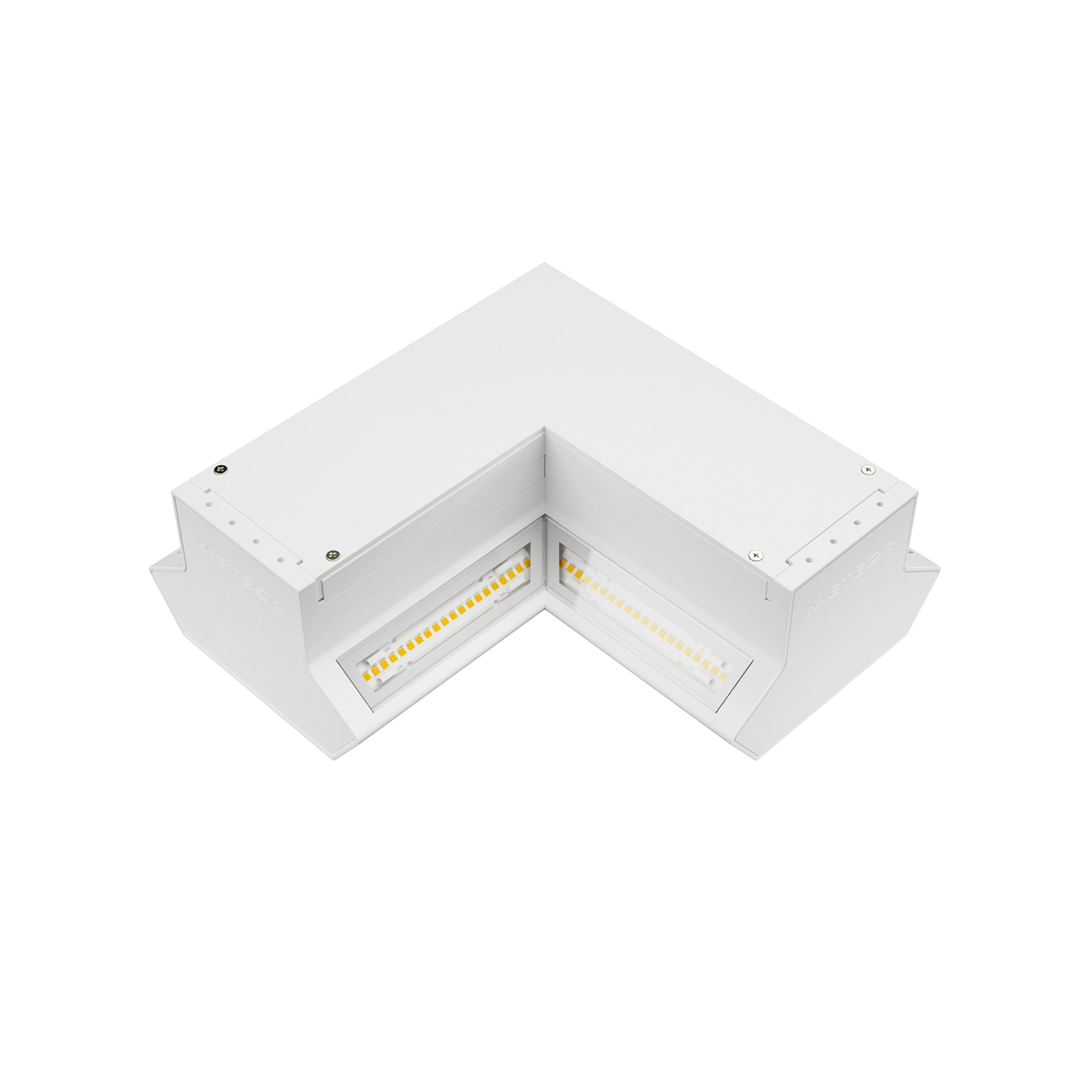

Non-illuminated NovaLink segments and corner blocks are also available to provide structural support where light is not needed.

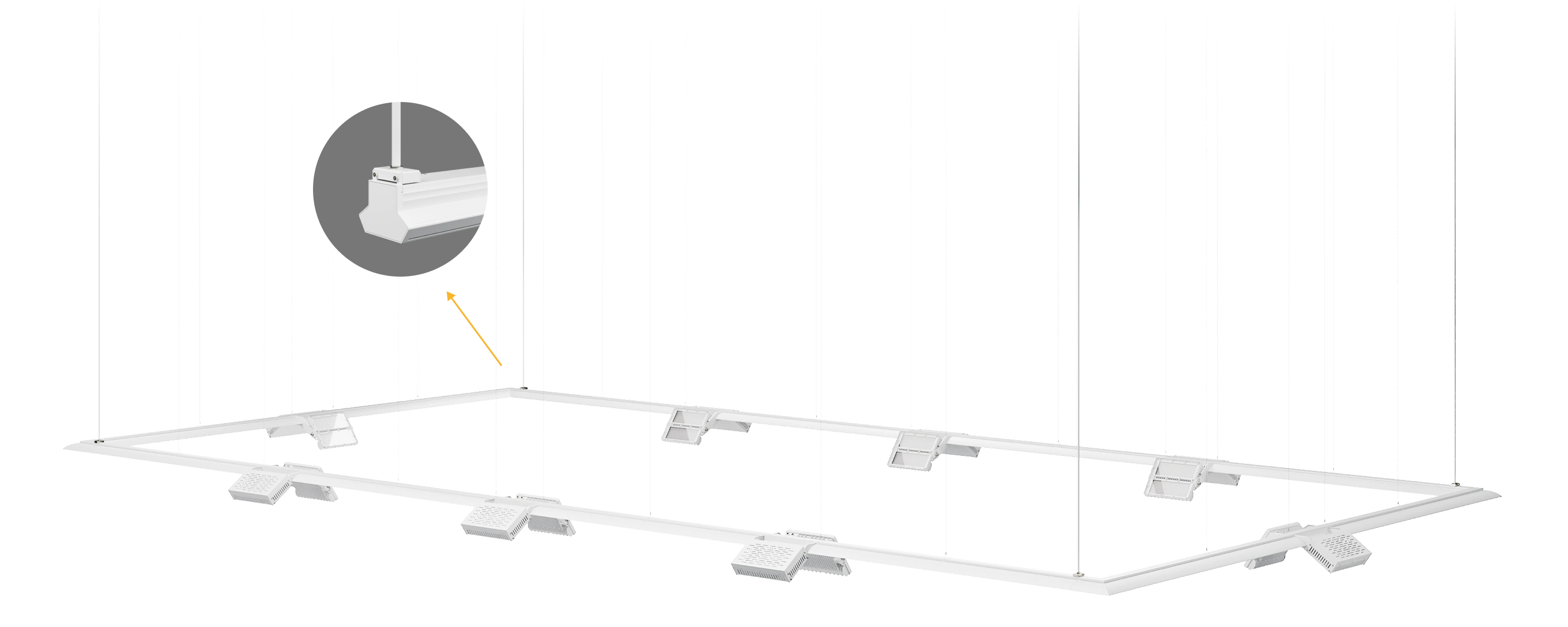

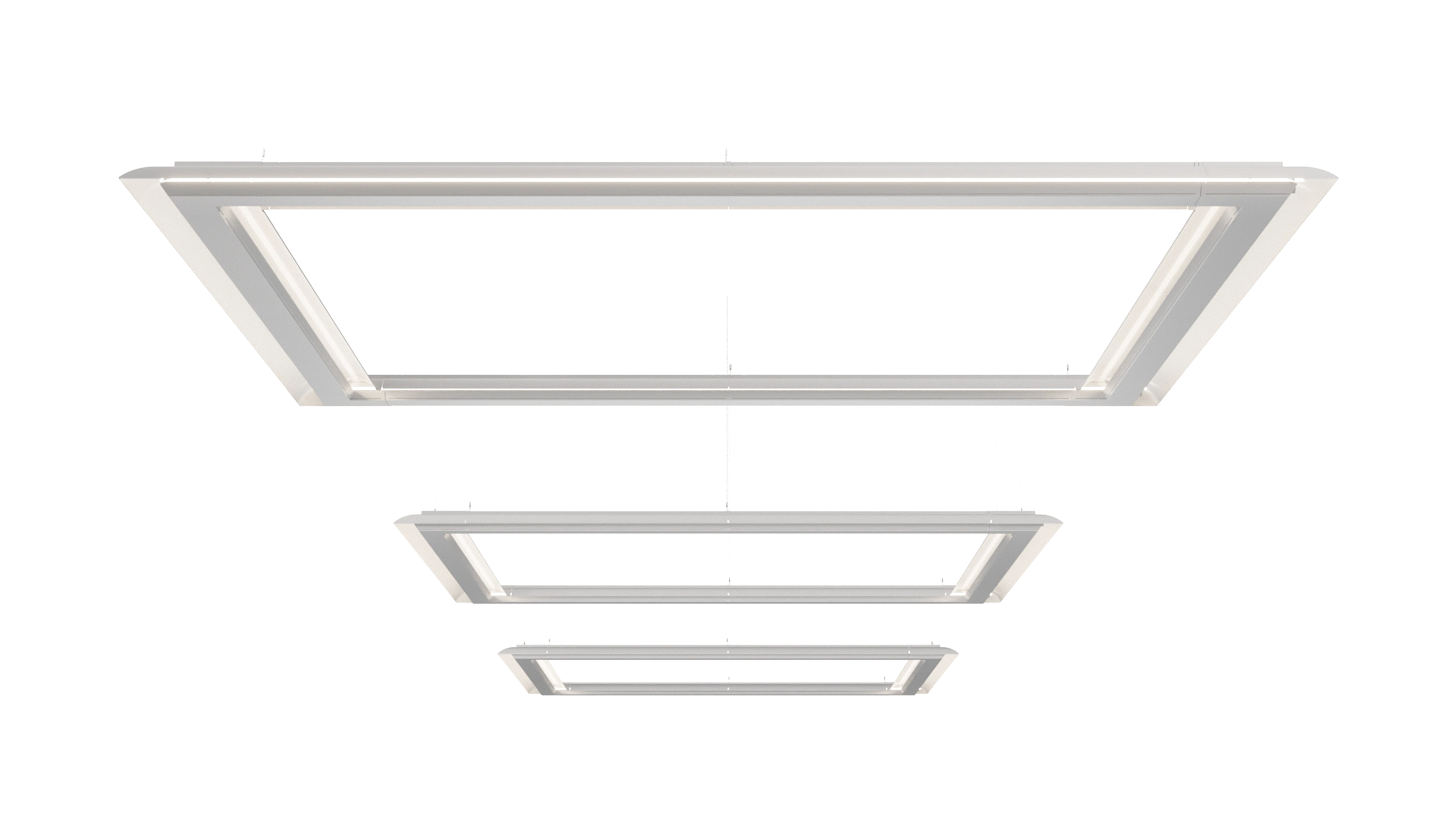

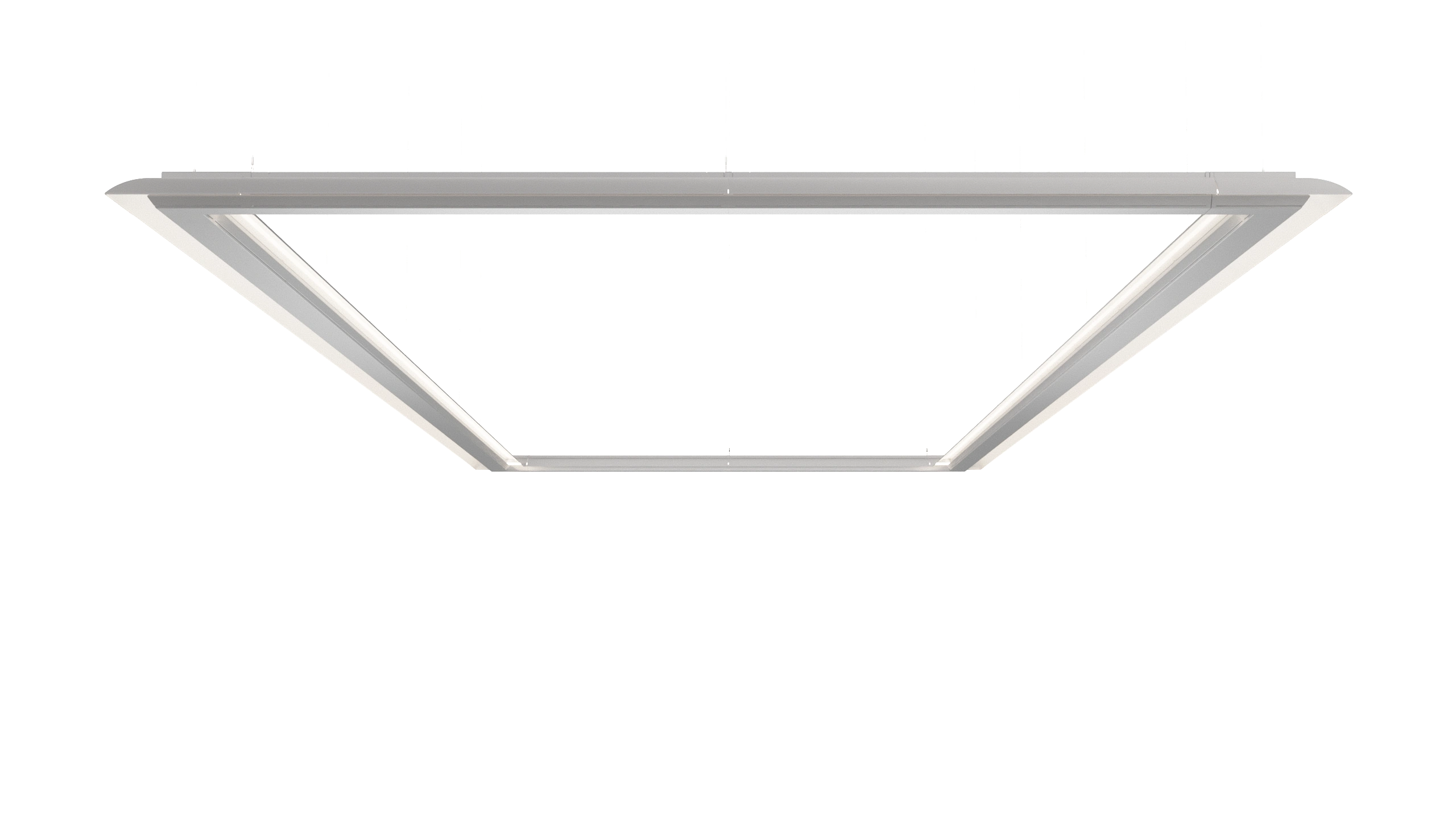

Flexible segments with interlocking ends and illuminated corner blocks enable seamless linear, perimeter, or grid layouts.
CREATE INFINITE LAYOUTS
NovaLink matches Bolt Nova’s IP66 protection and offers an optional fluorocarbon coating for durability in natatorium environments.

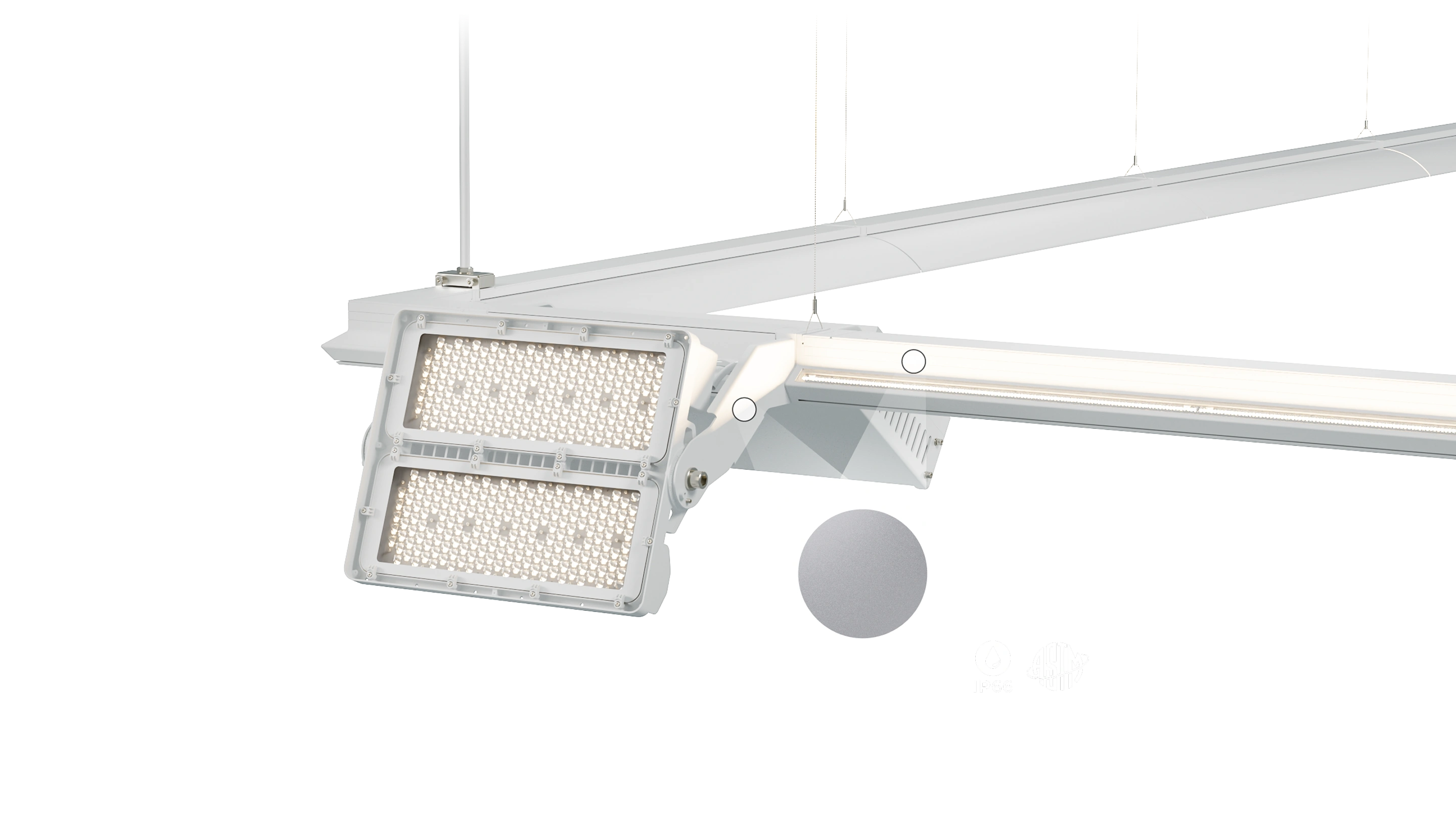

BOLT NOVA INTEGRATION
Blades can be placed as needed and are offered in single-sided, dual-sided, or bi-directional options—enabling uplight, downlight, or mixed distributions within the same continuous run.

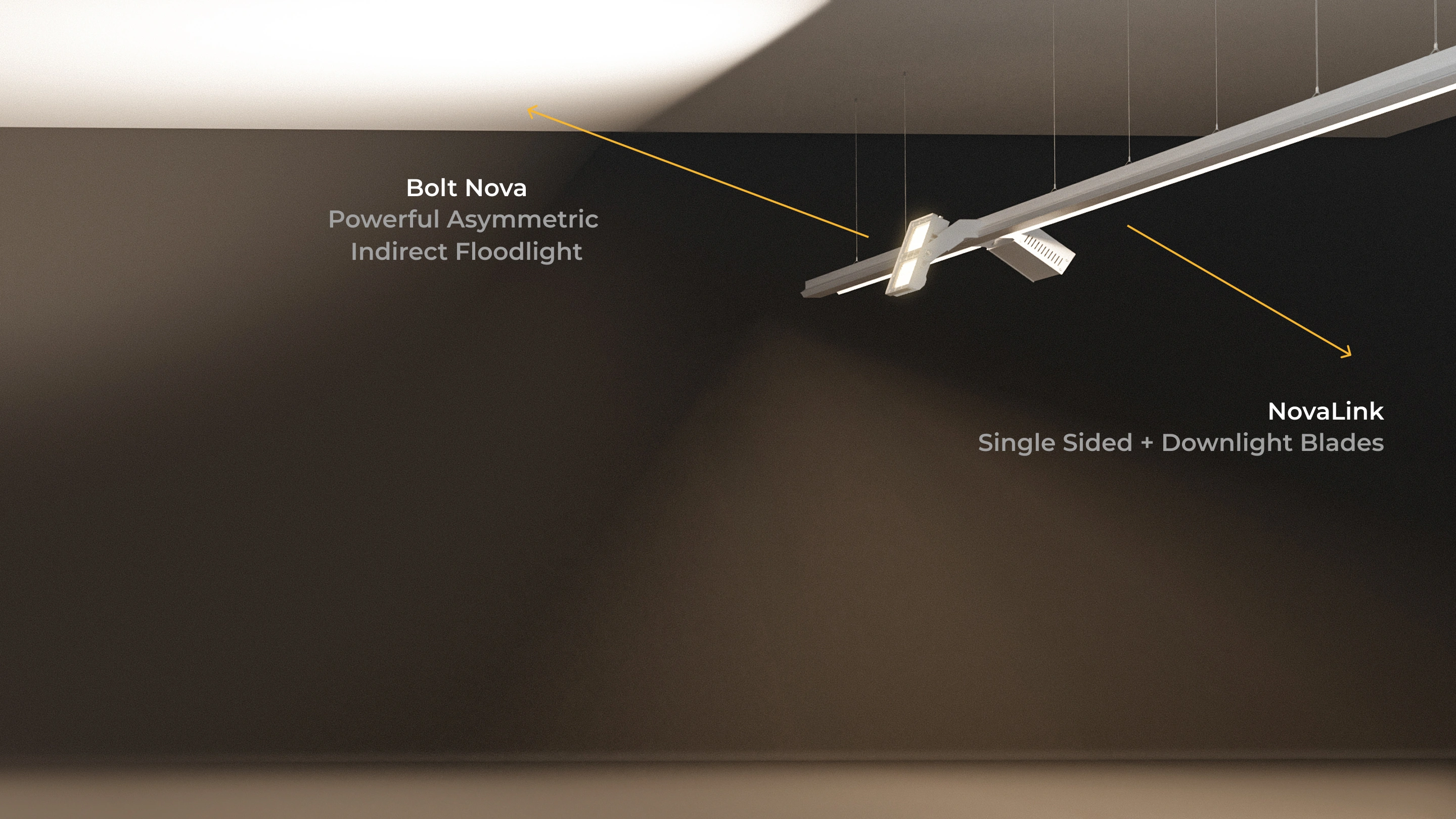

Together, the system covers a wide range of applications: NovaLink provides soft, glare-free illumination for concourses, bleachers, and transition areas, while Bolt Nova delivers powerful asymmetric indirect coverage for performance spaces such as swimming pools and sports courts.

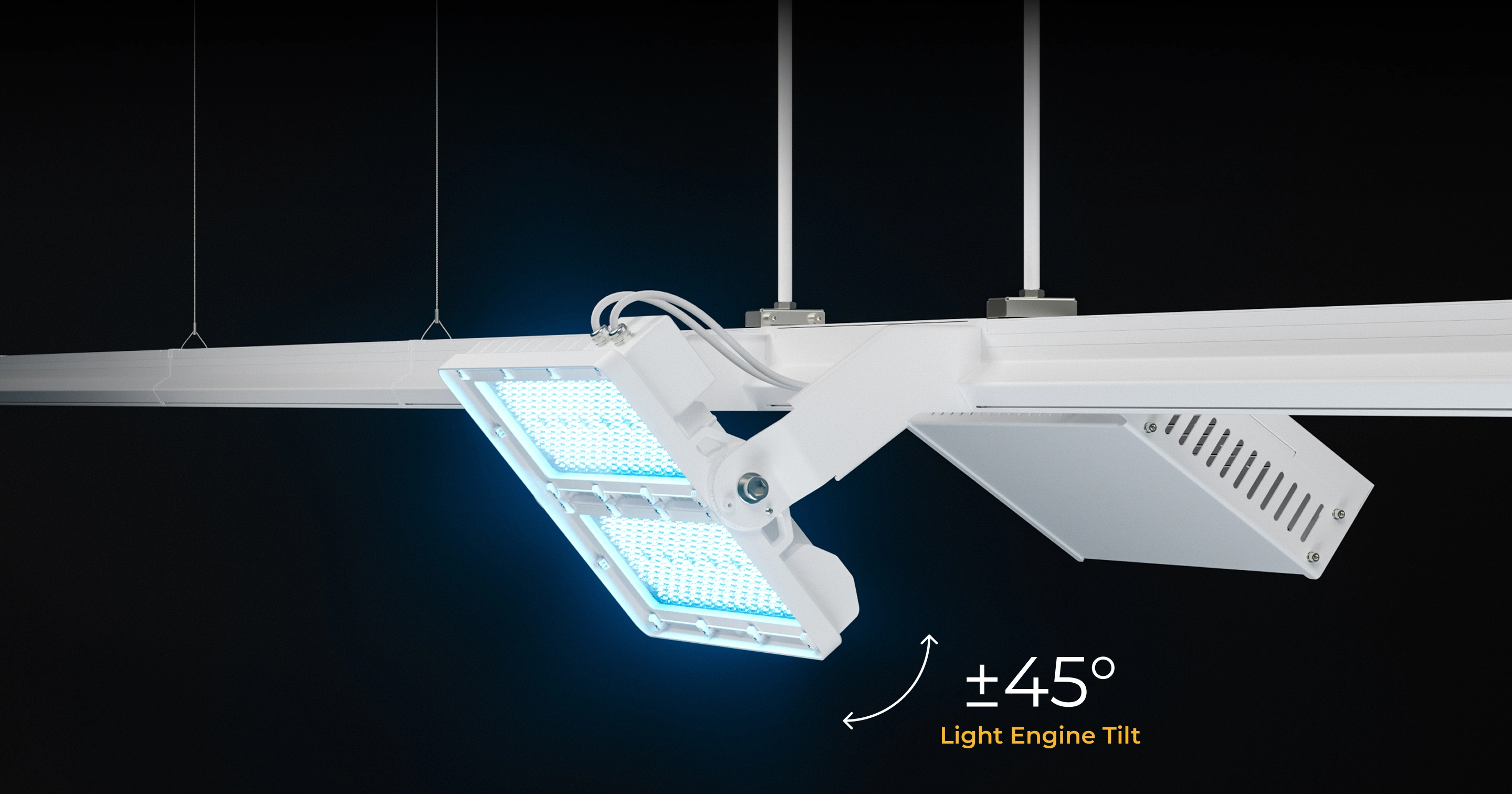

BOLT NOVA RGBW
Bolt Nova can be mounted for either indirect uplight or direct downlight, and are available in both static white and RGBW versions.
Suspended with cable or stem mount options, supporting power drops while providing added rigidity.
A COMPLETE SOLUTION
NovaLink and Bolt Nova are designed to work as one integrated system. NovaLink establishes the structural framework and broad ambient illumination, while Bolt Nova adds layers of focused, high-output lighting. The result is a cohesive platform that simplifies specification, reduces fixture clutter, and delivers consistent performance across large-scale environments.
Meteor Applications
NovaLink is designed for demanding high-ceiling projects, from natatoriums and sports arenas to convention centers, transit hubs, and large public venues.
Housing
24.9" x 5.5" x 3.8", 10.8 lbs
48.2" x 5.5" x 3.8", 21.6 lbs
WATTAGE
120W
240W
DELIVERED LUMENS
Uplight : 16,805 lm
Downlight Blade : 11,260 lm
Downlight Blade : 11,260 lm
Uplight : 33,610 lm
Downlight Blade : 22,520 lm
Downlight Blade : 22,520 lm
CCT
3000K, 3500K, 4000K, 5000K
DIMMING
0-10V 10%
MOUNTING
Adjustable Cable, Stem Mount
RATING
IP66, Outdoor, Natatorium
